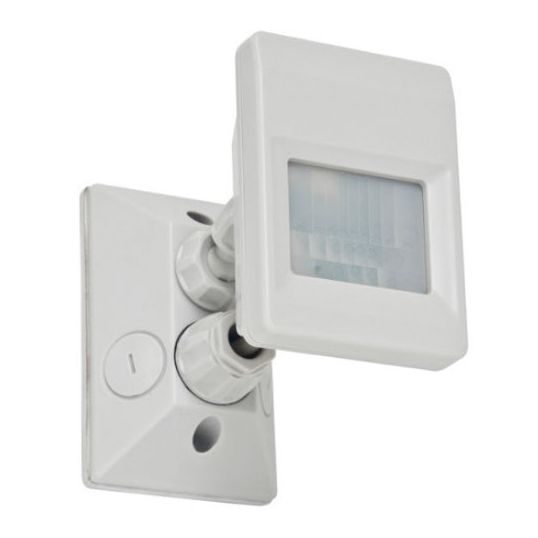

Robus Passive Infrared Motion Detector 110deg 1.2-15M 10A 230/240V IP66 White Surface Mount

$Robus\Robus_R110PIR3W_24.jpg$

Description

Passive Infrared Motion Detector, 230-240 Volt, 10 Amp, 50/60 Hz, 10-2000 Lux, 1.8-2.5 Mtr Mounting Height, Detection Angle: 110 deg, Detection Distance: 1.2-15 Mtr, 1.5 mm, IP66, Surface Mount, White, 5/40 deg C, 155 mm Length, 75 mm Width, 115 mm Height

Key Specifications

SKU	LEDR110PIR3W-24
Brand	Robus
Product Type	Motion Detectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Suitable for surface indoor and outdoor applications Weatherproof IP66 housing Can be either wall or ceiling mounted Manual override facility 3-wire version to cater for switches that have a neutral wire Terminals suitable for up to 1.5mm2 conductors Adjustment range 180 horizontal, 90 vertical Detection range adjustable from 1.2m to 15m Duration setting adjustable from 10 sec to 20 min Adjustable lux control level 10lx to 2000lx
Standard Pack Size	30
UNSPSC Class	39122200
UOM	EA
Vendor Product	R110PIR3W-24
Colour	White
Conductor Size	1.5 mm
Current	10 Amp
Detection Angle	110 deg
Detection Distance	1.2-15 mtr
Frequency	50/60 Hz
Intensity	10-2000 Lux
Height	115 mm
IP Rating	IP66
Mounting Height	1.8-2.5 mtr
Mounting Method	Surface
Temperature	5/40 deg C
Voltage	230-240 Volt
Width	75 mm
