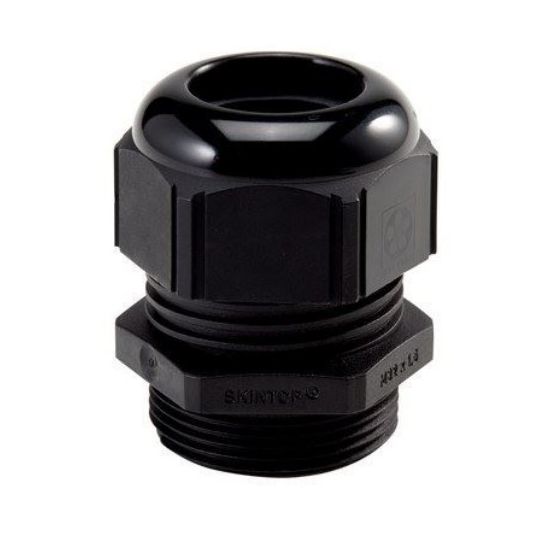

Lapp Kabel Cable Gland General Purpose Polyamide M20 x 1.5 7-13mm IP69

chevron-left
loader
Loading...

Description

chevron-down
Cable Gland General Purpose Plastic, M20 x 1.5 mm, 9 mm Thread Length, 1.5 mm, 7 mm Min. Sheath OD, 13 mm Max. Sheath OD, IP69, Polyamide Body, CR Seal, Black, -40 to 100 deg C/-20 to 100 deg C, 37 mm Overall Length, Without Locknut

Key Specifications

chevron-down
SKU
LAP53111220
Brand
Lapp Kabel
Range Name
Skintop ST-M
Product Type
Cable Glands Plastic

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • High oil-resistance for maximum reliability
  • Permanent vibration protection
  • Optimum strain relief
  • Temperature resistant
  • Good chemical resistance
  • Used in areas where cables and wires need to be safely inserted into housings
  • For machine and equipment manufacturing, Photovoltaic, Automation technology, Off shore platforms, equipment and shipyards
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product 53111220
Max. Sheath OD 13 mm
IP Rating IP69
Min. Sheath OD 7 mm
Body Material Polyamide
Finish Black
Overall Length 37 mm
Seal Material CR
Please Note Without Locknut
Thread Pitch 1.5 mm
Thread Length 9 mm
Temperature -40 to 100 deg C/-20 to 100 deg C
Thread Size M20 x 1.5 mm
