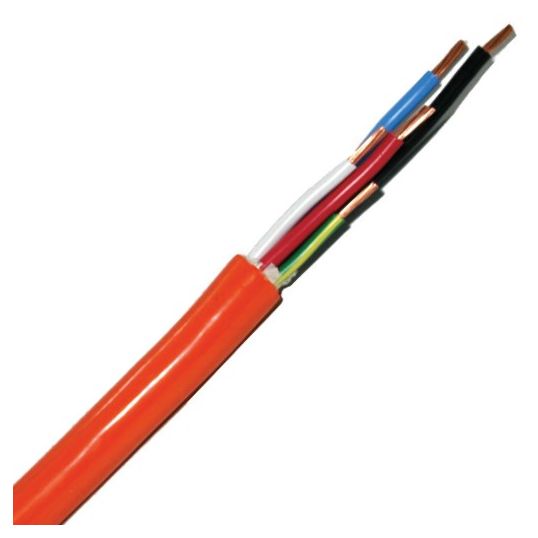

Lapp Kabel 25 mm Orange Circular Cable Unarmoured PVC/PVC 1mtr
Loading...
Description
Circular Power Cable, Unarmoured, 4 Core & Earth, 25 mm, Class 2 Stranded Copper, 0.6/1 kV, 19/1.35 mm Strands, 6 mm Earth Conductor, 27.4 mm Overall Diameter, PVC Insulation, PVC Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, -20 to 90 deg C
Key Specifications
| Barcode (EAN-13) |
4044773813760
|
|---|---|
| SKU |
LAP3801857
|
| Brand |
Lapp Kabel
|
| Product Type |
Circular Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 3801857 |
| Conductor Size | 25 mm |
| Conductor Type | Class 2 Stranded Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Insulation Material | PVC |
| Earth Conductor Size | 6 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 27.4 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Stranding | 19/1.35 mm |
| Temperature | -20 to 90 deg C |
| Voltage | 0.6-1 kV |
Downloads
