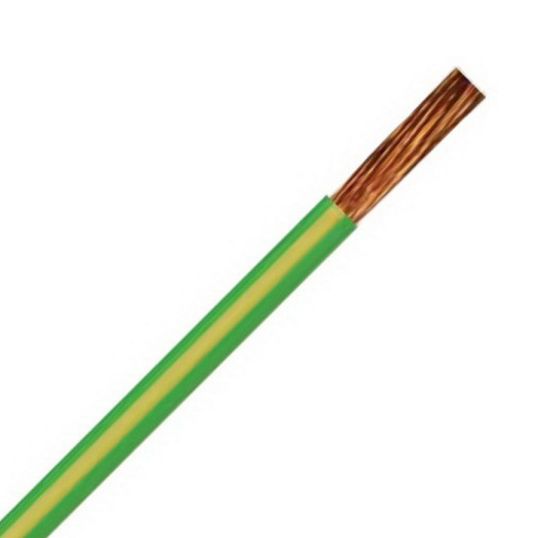

Lapp Kabel Flexible Wire Single Insulated 1 Core 25mm 0.6/1kV Copper TPR Green/Yellow

$Lapp_Kabel\Lapp_Kabel_Flex_1C_Earth.jpg$

Description

Flexible Wire, Single Insulated, 1 Core, 25 mm, Class 6 Super Fine Copper, 0.6/1 kV, 770/0.2 mm Strands, 10 mm Overall Diameter, Bend Radius: Static - 50 mm Flexible - 150 mm, TPR Insulation, Unsheathed, Green/Yellow Insulation, -30 to 90 deg C

Key Specifications

Barcode (EAN-13)	4044773814231
SKU	LAP3801523
Brand	Lapp Kabel
Range Name	TP90
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	3801523
Bend Radius	Static: 50 mm - Flexible: 150 mm
Conductor Size	25 mm
Conductor Type	Class 6 Super Fine Copper
Insulation Colour	Green/Yellow
Insulation Material	TPR
Number of Cores	1 Core
Overall Diameter	10 mm
Sheath Material	Unsheathed
Stranding	770/0.2 mm
Temperature	-30 to 90 deg C
Voltage	0.6-1 kV
