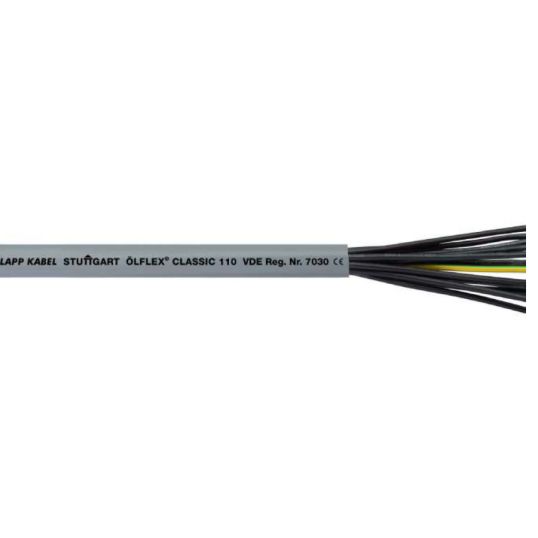

Lapp Kabel Olflex Classic 110 Flexible Control Cable Unscreened 49 Core & Earth 2.5mm 0.3/0.5kV Copper PVC/PVC Grey

$Lapp_Kabel\Lapp_Kabel_Olflex_Classic110_VDE.jpg$

Description

Flexible Control Cable, Unscreened, 49 Core & Earth, 2.5 mm, Stranded Bare Copper, 0.3/0.5 kV, 29.4 mm Overall Diameter, Bend Radius: Static - 117.6 mm Flexible - 294 mm, PVC Insulation, PVC Sheath, Black with White Numbered Green/Yellow Cores, Grey RAL 7001 Sheath, Static - -40 to 80 deg C Flexible - -15 to 70 deg C

Key Specifications

SKU	LAP1119450
Brand	Lapp Kabel
Range Name	Olflex Classic 110
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant Good chemical resistance Oil resistant
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1119450
Bend Radius	Static: 117.6 mm - Flexible: 294 mm
Conductor Size	2.5 mm
Conductor Type	Bare Copper
Core Colours	Green/Yellow/Black/White Numerals
Insulation Material	PVC
Number of Cores	49 Core + Earth
Overall Diameter	29.4 mm
Sheath Colour	Grey
Sheath Material	PVC
Temperature	Static: -40 to 80 deg C Flexible: -15 to 70 deg C
Voltage	0.3-0.5 kV
