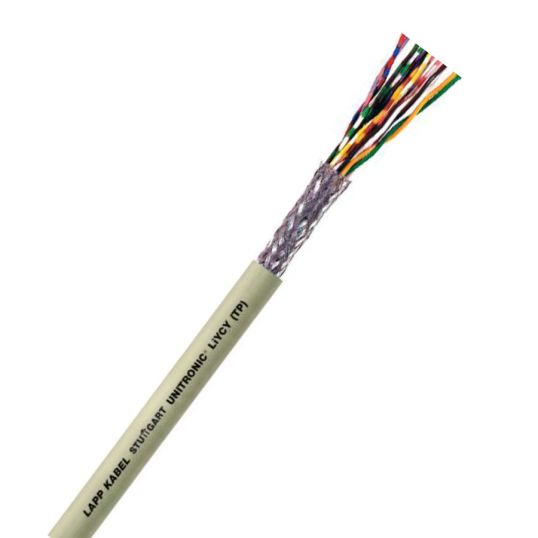

Lapp Kabel Unitronic LiYCY(TP) Data Cable 4 x 2 Pair Overall Screened 2 x 0.5mm 0.5kV PVC/TCBS/PVC Pebble Grey

$Lapp_Kabel\Lapp_Kabel_35800_35802_35805_35812.jpg$

Description

Data Cable, 2x0.5 mm, Bare Copper, 0.5 kV, 4 x 2 Pair, Overall Screened Screen, 9.4 mm Overall Diameter, Static 56.4 mm Flexible 141 mm Bend Radius, Tinned Copper Braid Screen, PVC Insulation, PVC Sheath, Pebble Grey Sheath, Static -40 to 80 deg C Flexible -5 to 70 deg C, DIN 47100 VDE 0812

Key Specifications

SKU	LAP0035812
Brand	Lapp Kabel
Range Name	Unitronic LiYCY
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant Good protection against capacitive interference from electric fields
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	0035812
Bend Radius	Static 56.4 mm/Flexible 141 mm
Conductor Type	Bare Copper
Insulation Material	PVC
Number of Pairs	4 x 2 Pair
Overall Diameter	9.4 mm
Screen Format	Overall Screened
Screen Material	Tinned Copper Braid
Sheath Colour	Pebble Grey
Sheath Material	PVC
Standards	DIN 47100 VDE 0812
Voltage	0.5 kV
Temperature	Static -40 to 80 deg C Flexible -5 to 70 deg C
