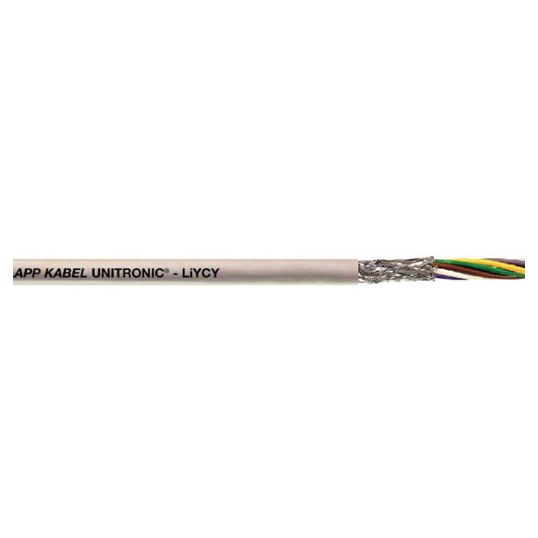

Lapp Kabel Unitronic LiYCY Data Cable 2 Core Overall Screened 0.5mm 0.5kV PVC/TCBS/PVC Pebble Grey

$Lapp_Kabel\Lapp_Kabel_34602.jpg$

Description

Data Cable, 0.5 mm, Bare Copper, 0.5 kV, 2 Core, Overall Screened Screen, 6.3 mm Overall Diameter, Static 37.8 mm Flexible 94.5 mm Bend Radius, Tinned Copper Braid Screen, PVC Insulation, PVC Sheath, Pebble Grey Sheath, Static -40 to 80 deg C Flexible -5 to 70 deg C, DIN 47100 VDE 0812

Key Specifications

SKU	LAP0034602
Brand	Lapp Kabel
Range Name	Unitronic LiYCY
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	0034602
Bend Radius	Static 37.8 mm/Flexible 94.5 mm
Conductor Size	0.5 mm
Conductor Type	Bare Copper
Insulation Material	PVC
Number of Cores	2 Core
Overall Diameter	6.3 mm
Screen Format	Overall Screened
Screen Material	Tinned Copper Braid
Sheath Colour	Pebble Grey
Sheath Material	PVC
Standards	DIN 47100 VDE 0812
Voltage	0.5 kV
Temperature	Static -40 to 80 deg C Flexible -5 to 70 deg C
