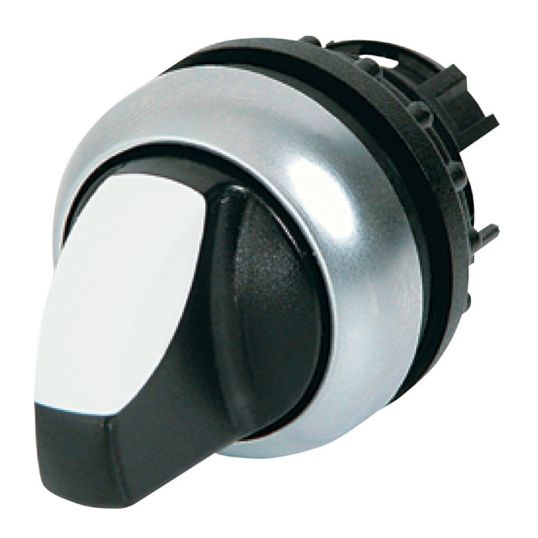

Eaton Moeller Rotary Selector Actuator 3 Position Plastic Body Non Illuminated Stayput/Maintained Black 22.5mm

$Eaton\Eaton_M22-WRK3.JPG$

Description

Rotary Selector Actuator, Thumb Grip Operator, Stayput/Maintained Operator Action, 3 Position, Screw Terminal, <=0.3 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Diameter, IP66, NEMA 4X/13, Silver Bezel, Black, -25 to 70 deg C, 29.7 mm Diameter, 26.9 mm Width

Key Specifications

SKU	KLOM22-WRK3
Brand	Eaton Moeller
Range Name	RMQ Titan
Product Type	Selector Actuators Rotary

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Impact resistant polycarbonate enclosures Base mounting contact blocks and light units for quick wiring and vibration resistance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	M22-WRK3
Colour	Black
Bezel Material	Silver
Diameter	29.7 mm
IP Rating	IP66
Mounting Diameter	22.5 mm
Mounting Method	Panel
NEMA Rating	NEMA 4X/13
Number of Positions	3
Operator Action	Stayput/Maintained
Operator Type	Thumb Grip
Temperature	-25 to 70 deg C
Terminal Connection	Screw
Tightening Torque	<=0.3 Nm
Width	26.9 mm
