Jinko Solar Solar Panel 510W Monocrystalline 120 Cells 37.15V 13.73A Anodized Aluminum Alloy N-Type 44.51V 14.33A 25A

Name: Solar Panel 510W Monocrystalline 120 Cells 37.15V 13.73A
SKU: JKM510N-60HL4-V
Availability: InStock

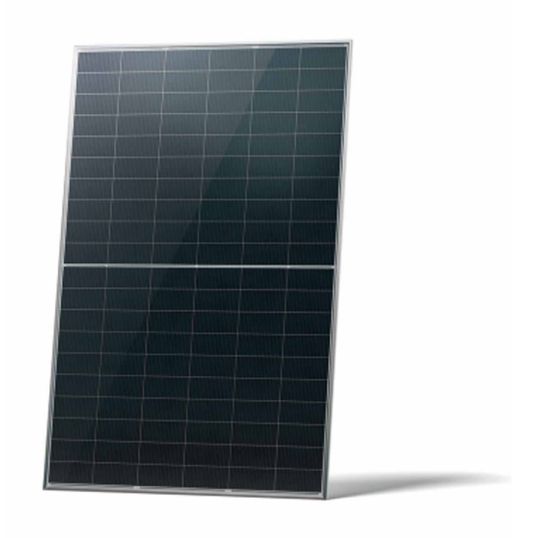

$Jinko_Solar\JinkoSolar_JKM510N-60HL4-V.JPG$

Description

Solar Panel, N-Type Model, Monocrystalline Cell, 120, 510 Watt, 37.15 Volt Maximum, 13.73 Amp Maximum, 44.51 Volt Open Circuit, 14.33 Amp Short Circuit, 25 Amp Max. Fuse, 1500 Volt DC Max. System, 23.6% Efficiency, +/-3% Power Tolerance, JK03M,JK03M2(JinKO)/MC4-EVO2 Connector, IP68 Junction Box

Key Specifications

SKU	JKM510N-60HL4-V
Brand	Jinko Solar
Range Name	Tiger Neo N Type
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	N-type Technology-N-type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance HOT 3.0 Technology-N-type modules with JinkoSolar's HOT 3.0 technology offer better reliabilityand efficiency. Mechanical Load Enhanced-Certified to withstand:5400 Pa front side max static test load;2400 Pa rear side max static test load
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM510N-60HL4-V
Cell Type	Monocrystalline
Connector Type	JK03M,JK03M2(JinKO)/MC4-EVO2
Efficiency	23.60%
Certifications	IEC61215:2016 / IEC617302:016 / ISO9001:2015 / ISO14001:2015 / ISO45001:2018
Frame Construction	Anodized Aluminium Alloy
Front Glass	3.2 mm Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Height	30 mm
Item Weight	22.5 kg
Junction Box	IP68
Max. Fuse Current	25 Amp
Max. System Voltage	1500 Volt DC
Model	N-Type
Number Of Cells	120
Output Cables	4 sq-mm (+): 400 mm , (-): 200 mm
Operating Temperature	-40 to 85 deg C
Power Tolerance	+/-3%
Temperature Coefficient	-0.29%/ deg C
Warranty	25 Years Product / 30 Year Linear Power
Width	1134 mm
Wattage	510 Watt
