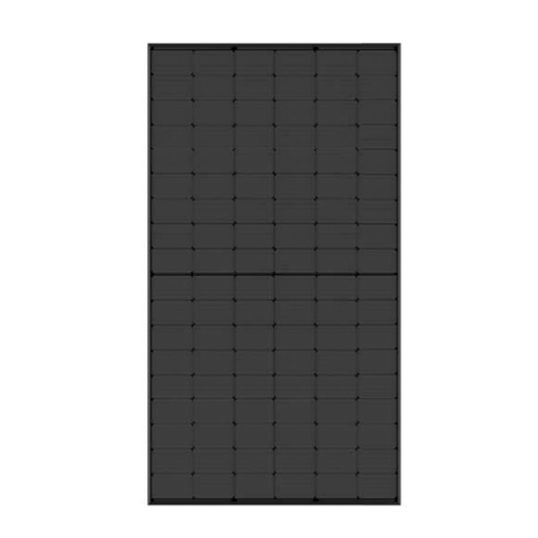

Jinko 440W Solar Panel Tiger Neo All Black Mono N-type 108 Cell

Name: Jinko 440W Solar Panel Tiger Neo All Black N-type 108 Cell
SKU: JKM440-54HL4R-B
Availability: InStock

$Jinko_Solar\JinkoSolar_JKM440-54HL4R-B.JPG$

Description

Jinko, Solar Panel, Tiger Neo, 440 Watt, 108 Cell, Mono-Crystalline, All Black, N-type

Looking for something specific? Search with keywords to help filter your required specifications.

Features	SMBB Technology Better light trapping and current collection to improve module power output and reliability. Hot 2.0 Technology HOT 2.0 The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID. PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Enhanced Mechanical Load 4000 Pa 6000 Pa NH Certified to withstand: wind load (4000 Pascal) and snow load (6000 Pascal). Durability Against Extreme Environmental Conditions High salt mist and ammonia resistance.
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM440-54HL4R-B
Cell Type	Monocrystalline
Efficiency	22.02%
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm Anti-Reflection Coating High Transmission Low Iron Tempered Glass
Height	1134 mm
Item Weight	22 kg
Junction Box	IP68 Rated
Max. System Voltage	1000VDC
Max. Current	13.34 Amp
Max. Fuse Current	25 Amp
Number Of Cells	108
Power Tolerance	0~+3%
Short Circuit Current	13.8 Amp
Output Cables	TUV 1Î4.0 mm (+): 400 mm. (-): 200 mm or Customized Length
Width	30 mm
Wattage	440 Watt
