Jinko Solar Eagle Solar Panel 275W Poly-Crystalline 60 Cells

Name: Solar Panel 275W Poly 60 Cells
SKU: JKM275PP-60
Availability: InStock

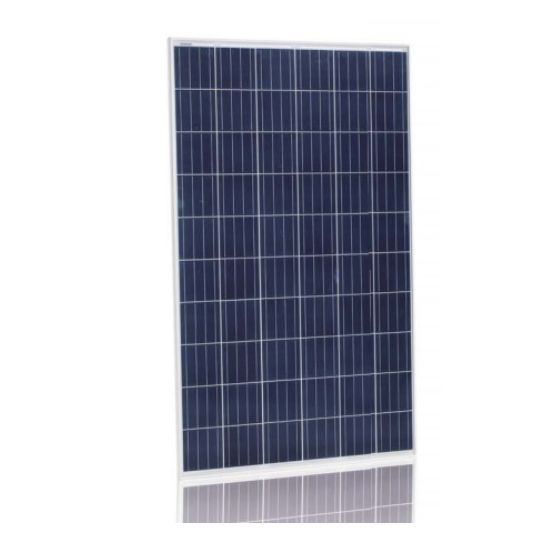

$Jinko_Solar\JinkoSolar_JKM275PP-60.jpg$

Description

Solar Panel, Polycrystalline Cell Type, 60 Number of Cells, 275 Watt Max. Power, 32 Volt Max. Voltage, 8.61 Amp Max. Current, 39.1 Volt Open Circuit Voltage, 9.15 Amp Short Circuit Current, 15 Amp Max. Fuse Current, 1000 Volt DC (IEC) Max. System Voltage, 16.80% Module Efficiency, 0 - 3% Power Tolerance, T?V 1 ? 4 sq-mm, Length: 900 mm or Customized Length Output Cables, IP67 Rated Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm, High Transmission, Low Iron, Tempered Glass Front Glass, 0.40%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1650 mm ? 992 mm ? 40 mm Dimensions, 19 kg Weight, ISO9001:2008, ISO14001:2004, OHSAS18001, IEC61215, IEC61730 Certifications

Key Specifications

SKU	JKM275PP-60
Brand	Jinko Solar
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	4 busbar solar cell High power output Anti-PID guarantee Low-light performance Severe weather resilience Durability against extreme environmental conditions Temperature coefficient
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	JKM275PP-60
Certifications	ISO9001 2008; ISO14001 2004; OHSAS18001; IEC61215; IEC61730
Cell Type	Polycrystalline
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm/High Transmission/Low Iron/Tempered Glass
Item Weight	19 kg
Junction Box	IP67 Rated
Max. System Voltage	1000 Volt DC (IEC)
Max. Current	8.61 Amp
Max. Voltage	32 Volt
Max. Fuse Current	15 Amp
Number Of Cells	60
Open Circuit Voltage	39.1 Volt
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-3%
Short Circuit Current	9.15 Amp
Output Cables	T?V 1 ? 4 sq-mm/Length: 900 mm
Temperature Coefficient	0.40%/deg C
Wattage	275 Watt
