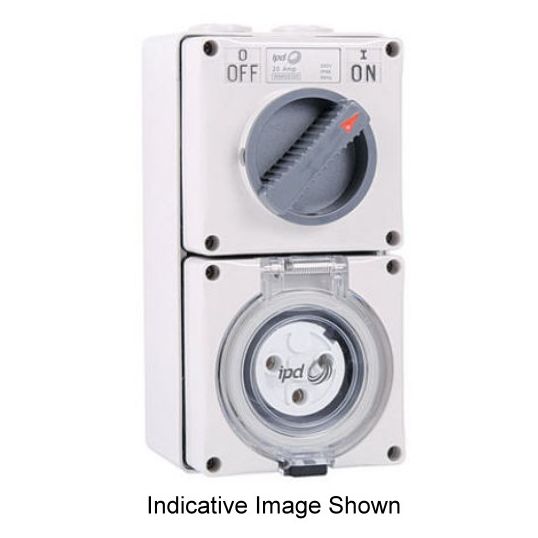

IPD Switch Socket Outlet Surface Mounting Weatherproof 1Ph 32A 250V 3 Pin Round Light Grey IP66
Loading...
Description
Switched Socket Outlet Weatherproof, 250 Volt AC, 32 Amp, 1 Phase Phase, 2 Pole, 3 Pin Round, Screw Tunnel Connection, 2xM25/1xM32 Conduit Entry, 16 mm Terminal Capacity, Surface Mounting, IP66, Light Grey, 197 mm Height, 101 mm Width, 91 mm Depth, For use with Straight Plug Top W66SP332
Key Specifications
| SKU |
IPDW66SS332
|
|---|---|
| Brand |
IPD
|
| Product Type |
Switch Sockets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 20 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | W66SS332 |
| Colour | Light Grey |
| Conduit Entry | 2xM25/1xM32 |
| Connection Type | Screw Tunnel |
| Current | 32 Amp |
| Depth | 91 mm |
| Height | 197 mm |
| IP Rating | IP66 |
| Mounting Method | Surface |
| Number Of Poles | 2 Pole |
| Phase | 1 Phase |
| Pin Configuration | 3 Pin Round |
| Please Note | For use with Straight Plug Top W66SP332 |
| Terminal Capacity | 16 mm |
| Width | 101 mm |
