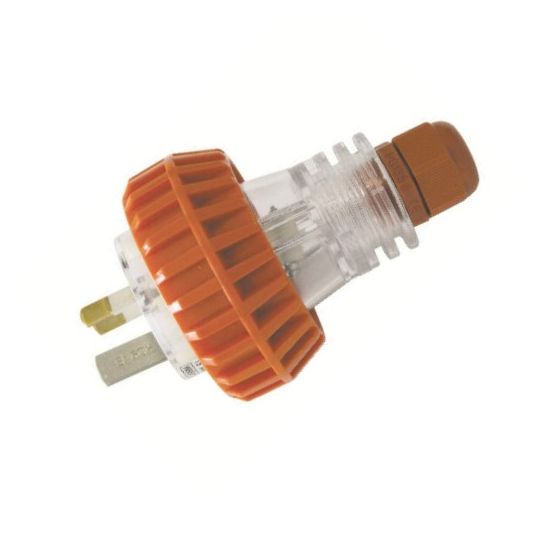

IPD Plug Straight Body Weatherproof 1Ph 15A 250V 3 Pin Flat Orange IP66

$IPD\IPD_W66SP315.jpg$

Description

Plug Straight Weatherproof, 250 Volt AC/DC, 15 Amp, Straight Angle, 1 Phase Phase, 3 Pin Flat, Screw Connection, 2.5 sq-mm Cable Entry, M20 Cable Gland Size, 6-11 mm Cable Nominal Diameter, IP66, Polycarbonate, Orange, 99.5 mm Depth

Key Specifications

Barcode (EAN-13)	9322017196035
SKU	IPDW66SP315
Brand	IPD
Range Name	W66
Product Type	Plugs Straight

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	W66SP315
Angle	Straight
Cable Entry	2.5 sq-mm
Colour	Orange
Cable Gland Size	M20
Cable Nominal Diameter	6-11 mm
Connection Type	Screw
Current	15 Amp
Depth	99.5 mm
IP Rating	IP66
Material	Polycarbonate
Pin Configuration	3 Pin Flat
Phase	1 Phase
Voltage	250 Volt AC/DC
