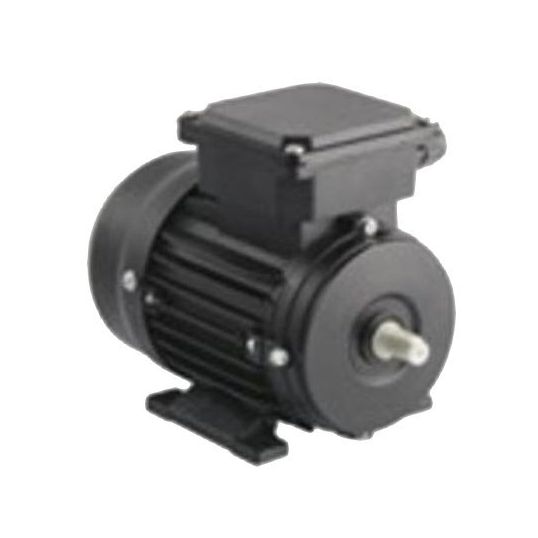

Invertek Electric Motor Squirrel Cage Induction 4P 3.0kW 1Ph 240V 100L2 Frame Foot Mount
Loading...
Description
Electric Motor Squirrel Cage Induction, 240 Volt AC, 17.1 Amp, 3.0 kW, 50 Hz, 1 Phase, 1400 rpm, 4 Pole, IP55, Frame: 100L2, Shaft Size: 28 mm, Anti-Clockwise Rotation, Duty Cycle: S1, Torque: 1.8-2.5 Tn, Foot Mount, Insulation Class: Class F, 40 deg C, Aluminium Alloy, 380 mm Length x255 mm Height
Key Specifications
| SKU |
INVM14003003IMSR
|
|---|---|
| Brand |
Invertek
|
| Product Type |
Motors SCIM
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26101100 |
| UOM | EA |
| Vendor Product | M14003003IMSR |
| Frame | Size 100L2 |
| Current | 17.1 Amp |
| Frequency | 50 Hz |
| Horsepower | 3 kW |
| IP Rating | IP55 |
| Height | 255 mm |
| Insulation Class | Class F |
| Material | Aluminium Alloy |
| Mounting Method | Foot |
| Number Of Poles | 4 Pole |
| Phase | 1 Phase |
| Rotation | Anti-Clockwise |
| Shaft Size | 28 mm |
| Speed | 1400 rpm |
| Temperature | 40 deg C |
| Voltage | 240 Volt AC |
| Torque Rating | 1.8-2.5 Tn |
