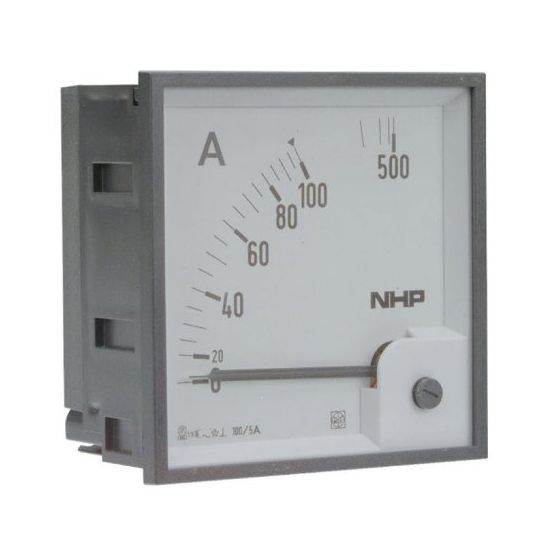

IME AC Ammeter Analogue Moving Iron Current Transformer 0-100A x 5 90Deg 72mm W Panel Mount

Description

AC Ammeter Analogue Moving Iron, 0 to 100 Amp With x 5 Over-Scale, 600 Volt AC, 0-100/500 Amp, 50/45-65 Hz, Current Transformer, 90 deg Deflection Accuracy Class 1.5, -25 to 50 deg C, Analogue Display, 72 mm Height x 72 mm Width, Panel Mount, Polycarbonate, 68 mm Height x 68 mm Width x 69 mm Depth

Key Specifications

SKU	IMERQ72EACT5A5X100A
Brand	IME
Range Name	RQ72
Product Type	Ammeters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Accuracy class 1.5 IP52 rated front frame
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	RQ72EACT5A5X100
Current	0-100/500 Amp
Depth	69 mm
Display	Analogue
Frequency	50/45-65 Hz
Frame Size	72mm x 72mm
Height	68 mm
Mounting Method	Panel
Operation Form	Current Transformer
Readout Form	90 deg Deflection Accuracy Class 1.5
Scale	0 to 100 Amp with x5 Over-Scale
Temperature	-25 to 50 deg C
Voltage	600 Volt
Width	68 mm
