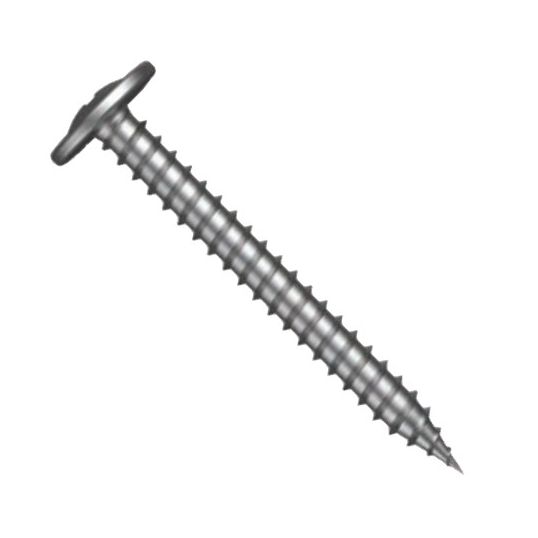

Hobson DRiLLX Stitching Screw 8Gx20mm Large Wafer Phillips Class 3 Metal
Loading...
Description
Stitching Screw, 4.2 mm Diameter, 8G, 15 TPI, Fully Threaded, Phillips Drive, #2 Drive, Needle Point, Large Wafer Head, 20 mm Overall Length, 10.5 mm Head Diameter, Class 3 Grade, C1022 Hardened Carbon Steel, AS3566, 1000 Pack
Key Specifications
| Barcode (EAN-13) |
9314818551274
|
|---|---|
| SKU |
HOBT9PN3AP0815020
|
| Brand |
Hobson
|
| Range Name |
Drillx
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1000 |
|---|---|
| UNSPSC Class | 31161500 |
| UOM | EA |
| Vendor Product | T9PN3AP0815020 |
| Drive Size | #2 |
| Diameter | 4.2 mm |
| Drive Type | Phillips |
| Grade | Class 3 |
| Head Diameter | 10.5 mm |
| Head Type | Large Wafer |
| Material | C1022 Hardened Carbon Steel |
| Overall Length | 20 mm |
| Pack Size | 1000 Pack |
| Product Type | simple |
| Point Type | Needle |
| Screw Gauge | 8G |
| Standards | AS3566 |
| Thread Count | 15 TPI |
| Thread Type | Fully Threaded |
