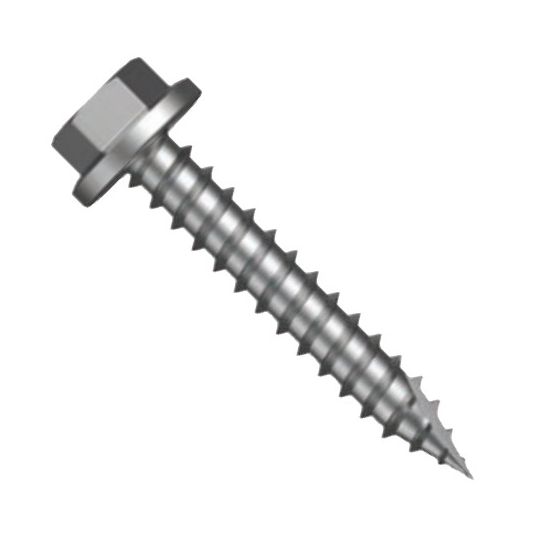

Hobson DRiLLX Self Drilling Screw Type 17 12Gx25mm Hex Flanged Class 4
Loading...
Description
Self Drilling Screw, 12G, 11 TPI, Fully Threaded, Hex Drive, 5/16 Inch Drive, Type 17 Point, Hex Flanged Head, 25 mm Overall Length, 14.5 mm Head Diameter, Class 4 Grade, C1022 Hardened Carbon Steel, AS3566, 500 Pack
Key Specifications
| Barcode (EAN-13) |
9350499005330
|
|---|---|
| SKU |
HOBFST9PW4FH1211025
|
| Brand |
Hobson
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 31161500 |
| UOM | EA |
| Vendor Product | FST9PW4FH1211025 |
| Drive Size | 5/16 inch |
| Drive Type | Hex |
| Grade | Class 4 |
| Head Diameter | 14.5 mm |
| Overall Length | 25 mm |
| Material | C1022 Hardened Carbon Steel |
| Pack Size | 500 Pack |
| Head Type | Hex Flanged |
| Product Type | simple |
| Point Type | Type 17 |
| Screw Gauge | 12G |
| Standards | AS3566 |
| Thread Count | 11 TPI |
| Thread Type | Fully Threaded |
