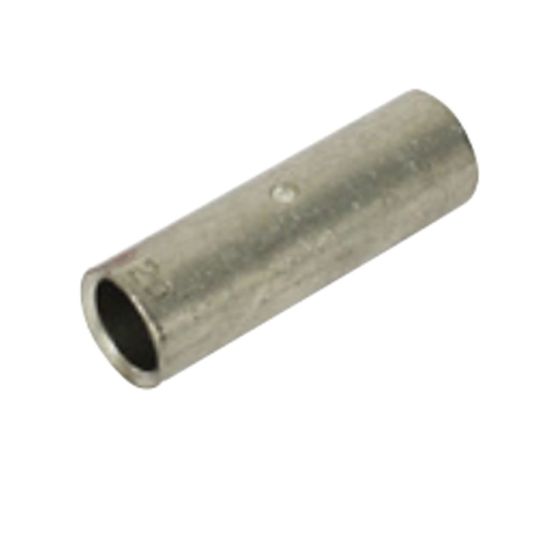

Hellermann Tyton Crimp Link Standard Copper 6mm 22mmL

$Hellermann_Tyton\Hellermann_CS6.jpg$

Description

Our Copper Links are designed for general-purpose copper conductor applications. They comply with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995. These links are manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring optimal electrical properties. They are ideal for use in applications such as connecting electrical wiring in industrial machinery or electrical panels. A crimping tool is recommended for this application.

Key Specifications

Barcode (EAN-13)	9349519001445
SKU	HMYCS6
Brand	Hellermann Tyton

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Made from high conductivity annealed copper Wide range of sizes Can be crimped using cable lug crimper or hammer style crimper Easy insertion of cable
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	CS6
Body Material	Copper
Conductive Material	Copper
A-F Hex Die	4.4 mm
Conductivity	99.9% IACS
Conductor Size	6 mm
Ductile Rating	40%
Crimping Die	HYCP400/DIECU185
Inside Diameter	3.8 mm
Number of Strands	7/1.04
Outside Diameter	24.2 mm
Overall Length	22 mm
Resistivity	1.72 micro-Ohm/cm
Temperature	-55 to 155 deg C
Tensile Strength	205 Mpa
