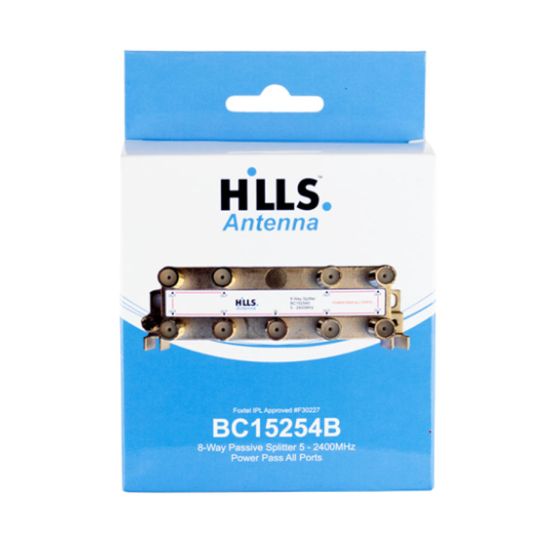

Hills Industries 8-Way Passive Splitter 2400 MHz F?Type For Use With Antenna Screw Mount

$Hills_Industries\Hills_BC15254B.JPG$

Description

The Hills Antenna BC15254B 8-Way Passive Splitter is designed to divide the signal power from a TV or satellite antenna into eight equal portions, providing connectivity for up to eight outlets throughout the home. Ideal for domestic and commercial applications, the splitter is optimised for frequencies between 5–2400MHz. It should be mounted as close as possible to the antenna, with the roof cavity being a recommended location for best performance

Key Specifications

Barcode (EAN-13)	9340591017249
SKU	HILBC15254B
Brand	Hills Industries

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	8-Way Signal Split: Distributes TV and satellite signals to 8 outlets Frequency Range: 5-2400MHz, suitable for TV and satellite applications Connection Type: F-Type connections for consistent and reliable performance Earthing Lug: Provides optional earthing if required Foxtel Approved: IPL #F30227 for certified installation Installation Location: Best mounted near the antenna, typically in the roof cavity
Standard Pack Size	100
UNSPSC Class	43221700
UOM	EA
Vendor Product	BC15254B
Connection Type	F?Type
Dimensions	100 mm Width x 130 mm Length 30 mm Height
For Use With	Antenna
Frequency	2400 MHz
Material	Die-Cast Zinc
Insertion Loss	14 -16 dB
Mounting Method	Screw
Number of Inputs	1 In
Number of Outputs	8 Out
Please Note	Display Box
Product Type	simple
