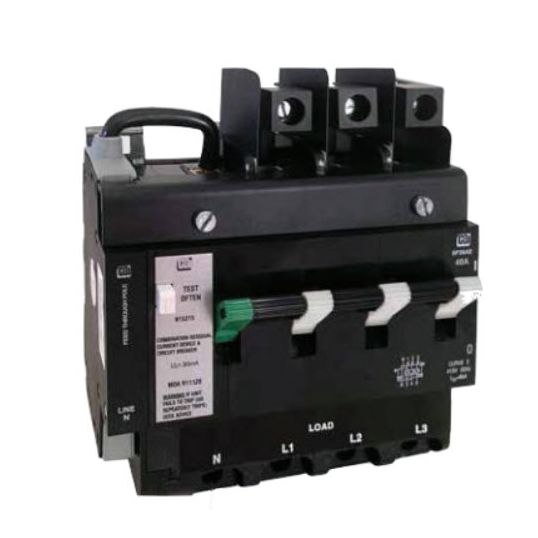

Heinelec Industrial Earth Leakage Circuit Breaker 4 Pole (3Ph+N) 20 Amp 415V AC 4Module 117mm Clip Tray Surface

$Heinelec\Heinelec_SF36AE.jpg$

Description

Earth Leakage Circuit Breaker Heavy Duty Industrial, 415 Volt, 20 Amp, 50/60 Hz, 30 mA Trip Sensitivity, 4 + N Pole, 4 Module 117 mm, 0.75 to 35 sq-mm Terminal, Shrouded Line and Load Connection, IP2X, Clip Tray/Surface Mounting, 40 to 85 deg C, 119.5 mm Height, 80 mm Width, 116.4 mm Depth

Key Specifications

SKU	HEISF36AE20
Brand	Heinelec
Range Name	SF36AE
Product Type	Earth Leakage Circuit Breaker

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Hydraulic magnetic technology 100% rating capability, independent of ambient temperature Immune to pulsating DC load current Three pole plus switched neutral earth leakage protection Switches all active and neutral poles Precision tripping characteristics Reset immediately after overload Suitable to use for electrical isolation
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SF36AE20
Frequency	50/60 Hz
Depth	116.4 mm
Connection Type	Shrouded Line and Load
Current	20 Amp
Height	119.5 mm
IP Rating	IP2X
Mounting Method	Clip Tray/Surface
Modules	4 Module 117 mm
Temperature	40 to 85 deg C
Terminal Connection	0.75-35 sq-mm
Trip Sensitivity	30 mA
Voltage	415 Volt
Width	80 mm
