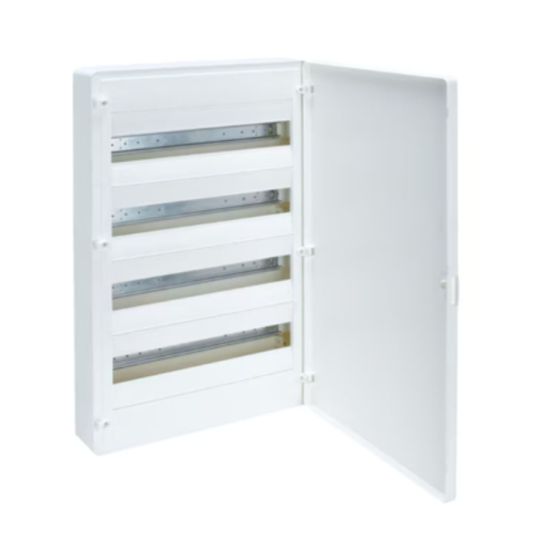

Hager 72 Pole Small Distributor Surface Mount 400 Volt 80 Amp Plastic Opaque Door

$Hager\Hager_VS418PT.JPG$

Description

Small Distributor, 400 Volt, 80 Amp, 4 Row, 72 Module, IP40, Surface Mounting, For Use With DIN Equipment, Plastic, Pure White, 25 to 40 deg C, 646.5 mm Height x 389.5 mm Width x 98.5 mm Depth, Opaque Door

Key Specifications

Barcode (EAN-13)	3250616595774
SKU	HAGVS418PT
Brand	Hager
Range Name	Golf

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Opaque or transparent door for devices up to 70 mm installation depth Door opens up to 180 deg and can be fitted on right or left, with optional lock and keys Wall box and cover are symmetrical for removable cable entry slider Cable entries for cable and conduit Earth and neutral terminals Pole fillers Patented marking system Cable management clips Transport protection film Busbar supplied with some references
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	VS418PT
Colour	White
Current	80 Amp
For Use With	DIN Equipment
Dimensions	646.5 mm Height x 389.5 mm Width x 98.5 mm Depth
IP Rating	IP40
Material	Plastic
Modules	72 Module
Mounting Method	Surface
Number of Rows	4 Row
Please Note	Opaque Door
Temperature	25 to 40 deg C
Voltage	400 Volt
