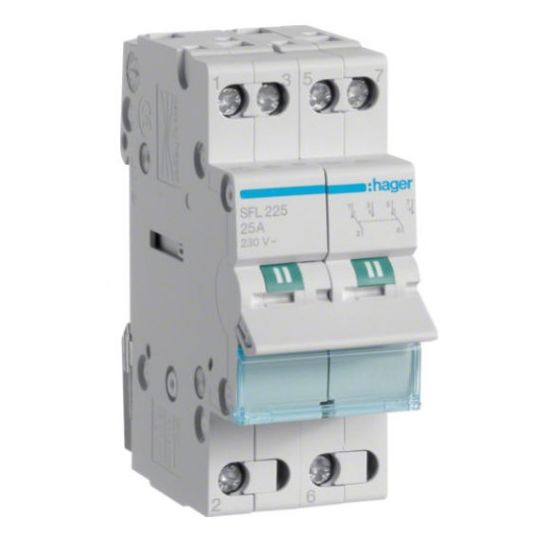

Hager Changeover Switch 2P 25A AC21 DIN Rail Mount IP20

$Hager\Hager_SFL225.jpg$

Description

Changeover Switch DIN Mount, 230 Volt, AC21 Rating: 25 Amp @ 240 Volt, Power Rating: 1.8 Watt, 50/60 Hz, 2 Pole, Manual Actuator, 1.5/10 mm (Flexible), 1.5/16 mm (Rigid), DIN Rail Mount, IP20, Screw Terminal, -20 to 50 deg C, 83 mm Height, 35 mm Width, 68 mm Depth

Key Specifications

Barcode (EAN-13)	3250615510778
SKU	HAGSFL225
Brand	Hager
Product Type	Changeover Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SFL225
AC21 Rating	25 Amp AC21 @ 240 Volt
Actuator	Manual
Conductor Size	1.5/10 sq-mm (Flexible) 1.5/16 sq-mm (Rigid)
Connection Type	Screw
Depth	68 mm
Frequency	50/60 Hz
Height	83 mm
Number Of Poles	2 Pole
IP Rating	IP20
Mounting Method	DIN Rail
Power Rating	1.8 Watt
Temperature	-20 to 50 deg C
Width	35 mm
Voltage	230 Volt
