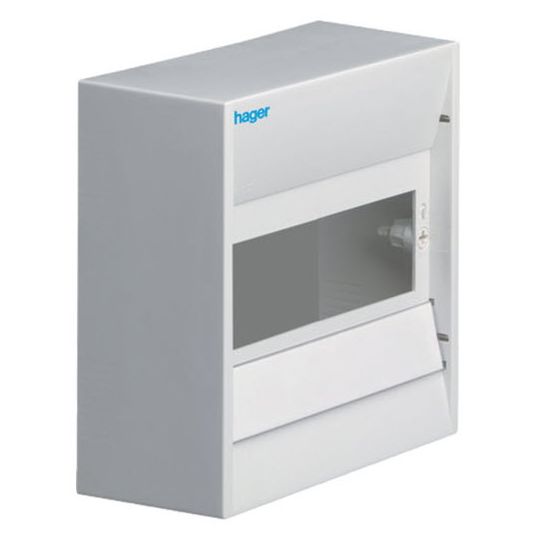

Hager 6 Pole Switchboard Mini-Enclosure Surface Mount 230 Volt 50 Amp Plastic

$Hager\Hager_GD106T.jpg$

Description

Switchboard Mini-Enclosure, 230 Volt, 50 Amp, 1 Row, 6 Module, IP30, Surface Mounting, For Use With DIN Equipment, Plastic, Pure White, 180 mm Height x 146 mm Width x 82 mm Depth

Key Specifications

Barcode (EAN-13)	3250612846528
SKU	HAGGD106T
Brand	Hager

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Surface mounted enclosures, with a rigid chassis, housing a 47 mm DIN rail Cover fixed by quarter turn screws with facility for cover to be sealed IP40 with door installed
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	GD106T
Colour	White
Current	50 Amp
For Use With	DIN Equipment
Dimensions	180 mm Height x 146 mm Width x 82 mm Depth
IP Rating	IP30
Material	Plastic
Modules	6 Module
Mounting Method	Surface
Number of Rows	1 Row
Voltage	230 Volt
