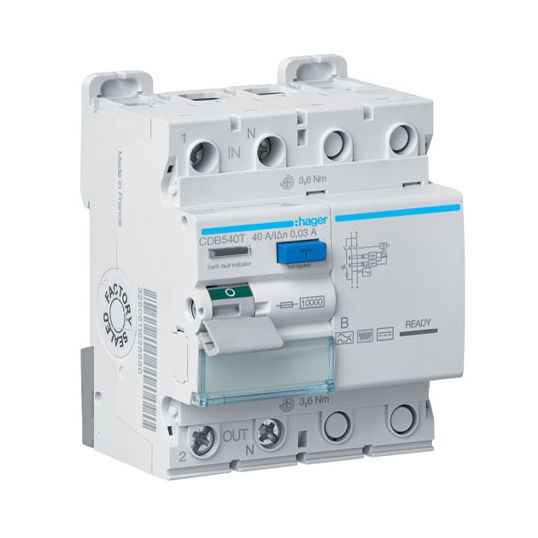

Hager Residual Current Circuit Breaker 10 kA 1P+N 40 Amp 30 mA IP20

$Hager\Hager_CDB540T.jpg$

Description

Residual Current Circuit Breaker/230-240 Volt/40 Amp/50 Hz/10 kAinterrupt Capacity/30 mA Trip Sensitivity/1P+N/Aligned Terminal/IP20/DIN Rail Mounting/10000 Cycles Electrical Life/20000 Cycles Mechanical Durability/1-25 mm/-25 to 70 deg C/85mm Height x 72mm Width x 70mm Depth

Key Specifications

Barcode (EAN-13)	3250611628897
SKU	HAGCDB540T
Brand	Hager
Product Type	Residual Current Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	CDB540T
Conductor Size	1-25 sq-mm
Current	40 Amp
Frequency	50 Hz
Depth	70 mm
Electrical Life	10000 Cycles
Height	85 mm
Interrupt Capacity	10 kA
Mechanical Durability	20000 Cycles
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	-25 to 70 deg C
Terminal Type	Aligned
Trip Sensitivity	30 mA
Voltage	230-240 Volt
Width	72 mm
