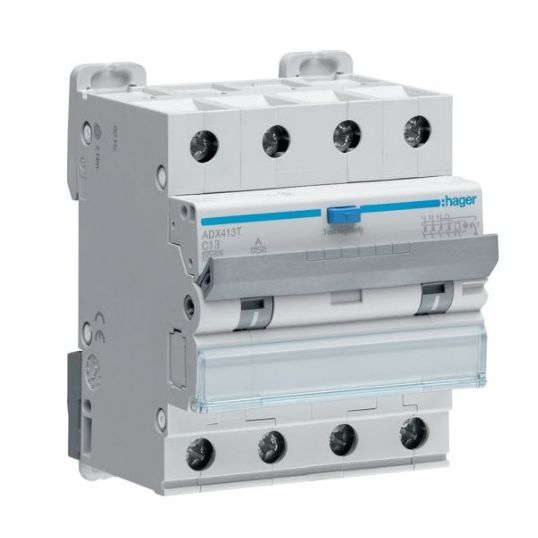

Hager Combination RCD Circuit Breaker RCBO 4Pole 20 Amp 230/400-240/415VAC 10 kA DIN Rail

$Hager\Hager_ADXXXXT.jpg$

Description

Combination RCD Circuit Breaker RCBO Type A, 20 Amp, 230/400-240/415 Volt AC, 50 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 30 mA, Number of Poles: 4, Trip Characteristic: C Curve, 1/16 mm Flexible, 1/25 mm Rigid Terminal Connection, Screw, IP20, DIN Rail,-55 to 70 deg C, 84mm Height, 71mm Width, 70mm Depth

Key Specifications

Barcode (EAN-13)	3250611033110
SKU	HAGADX420T
Brand	Hager
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ADX420T
Connection Type	Screw
Frequency	50 Hz
IP Rating	IP20
Current	20 Amp
Interrupt Capacity	10 kA
Depth	70 mm
Height	84 mm
Mounting Method	DIN Rail
Number Of Poles	4 Pole
Terminal Connection	1 / 16 sq-mm Flexible / 1 / 25 sq-mm Rigid
Temperature	-55 to 70 deg C
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	230-400-240-415 Volt
Width	71 mm
