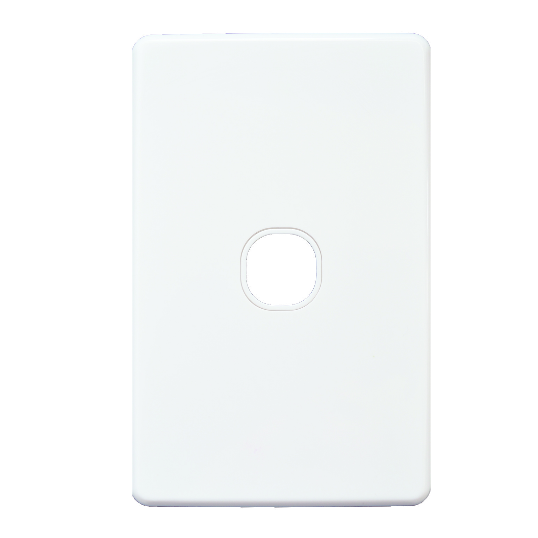

GSME Switch Cover Plate Flush Mount Standard 1 Gang Vertical White

Description

Switch Cover Plate, 1 Gang, Vertical Orientation, Flush Mounting, 84 mm Mounting Centres, UV Stabilised Polycarbonate, White, 116.5 mm Height, 25.8 mm Width, 75.5 mm Depth, 13 mm Thickness, Less Mechanism

Key Specifications

Barcode (EAN-13)	9349703004375
SKU	GSMPUSWPV1G
Brand	GSME Trader
Range Name	Puma
Product Type	Covers & Grids

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Switches are 2 way with looping terminal and suit 4 x 1.5 sq-mm cabling with 4.1 mm bore Slotted head screws for the terminals Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow Less Mechanism
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	PUSWPV1G
Colour	White
Depth	75.5 mm
Height	116.5 mm
Mounting Method	Flush
Mounting Centres	84 mm
Number Of Gangs	1 Gang
Material	UV Stabilised Polycarbonate
Orientation	Vertical
Please Note	Less Mechanism
Width	25.8 mm
Thickness	13 mm
