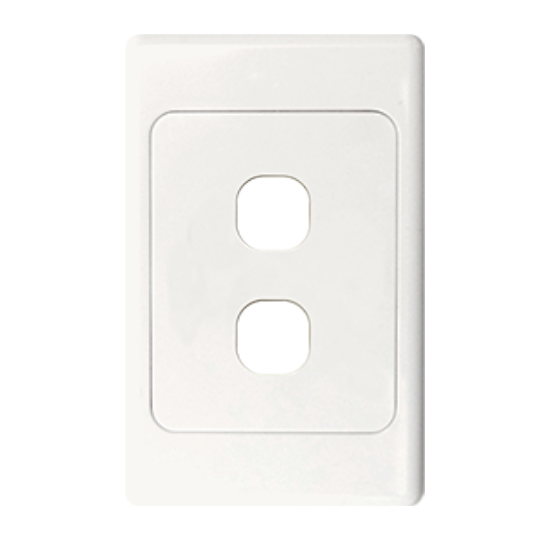

GSME Switch Cover Plate Flush Mount Standard 2 Gang Vertical White

Description

Switch Cover Plate, 2 Gang, Vertical Orientation, Flush Mounting, 84 mm Mounting Centres, Polycarbonate, White, 117 mm Height, 25.8 mm Width, 74 mm Depth, 13 mm Thickness, Less Mechanism

Key Specifications

Barcode (EAN-13)	9349703008113
SKU	GSMCOSWPV2G
Brand	GSME Trader
Range Name	Cougar
Product Type	Covers & Grids

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Switches are 2 way with looping terminal and suit 3 x 1.5 sq-mm cabling with 4.1 mm bore Switch has combination head screws for terminals Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow The clip-in switch mechanism is able to be used and clip into other trader and competitor switch plate ranges M100 motor rating
Standard Pack Size	10
UNSPSC Class	39122200
UOM	EA
Vendor Product	COSWPV2G
Colour	White
Depth	74 mm
Mounting Centres	84 mm
Material	Polycarbonate
Height	117 mm
Number Of Gangs	2 Gang
Orientation	Vertical
Mounting Method	Flush
Please Note	Less Mechanism
Thickness	13 mm
Width	25.8 mm
