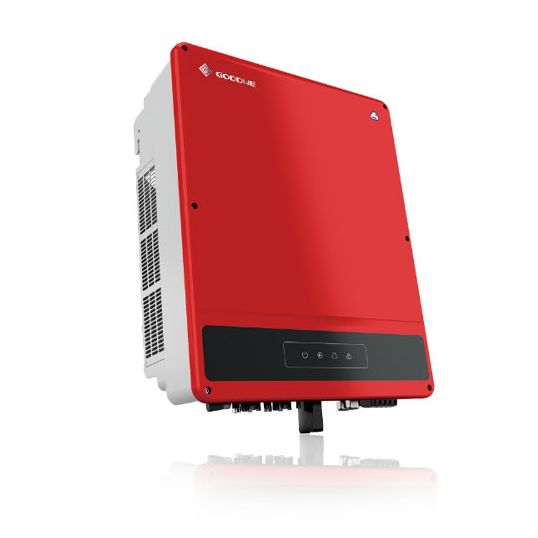

Goodwe SMT Series Solar Inverter 3 MPPT Three Phase 29.9kW RS485/Wi-Fi/GPRS/PLC


Description

Solar Inverter Triple MPPT, 3 Phase Phase, 39000 Watt DC Input, 1100 Volt DC Input, 600 Volt DC Nominal, 200-950 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 25 Amp DC Max. Input, 3 MPPTs, 29.9 kW AC Output, 29900 VA AC Max. Apparent, 400 Volt 3L/N/PE or 3L/PE, 50/60 Hz, 43.3 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, 0.988 Efficiency, >98.5% European Weighted Efficiency, Transformerless, RS485/Wi-Fi/GPRS/PLC, LCD and LED or App and LED Display, Fan Cooling, IP65, -30 to 60 deg C

Key Specifications

SKU	GDWGW29.9K-MT
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW29.9K-MT
AC Max. Apparent Power	29900 VA
AC Nominal Voltage	400 Volt 3L/N/PE or 3L/PE
AC Operating Frequency	50/60 Hz
AC Output Power	29.9 kW
Communication Port	RS485/Wi-Fi/GPRS/PLC
AC Output Current	43.3 Amp
Cooling Method	Fan
DC Input Power	39000 Watt
DC Input Voltage	1100 Volt
DC Nominal Voltage	600 Volt
DC MPPT Voltage Range	200-950 Volt
DC Start-up Voltage	180 Volt
DC Max. Input Current	25 Amp
Display Type	LCD and LED or App and LED
Depth	200 mm
Efficiency	0.988
European Weighted Efficiency	>98.5%
Height	590 mm
IP Rating	IP65
Number of MPPTs	3
Operating Temperature	-30 to 60 deg C
Phase	3 Phase
Power Factor	1 (Adjustable 0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Topology	Transformerless
Width	480 mm
