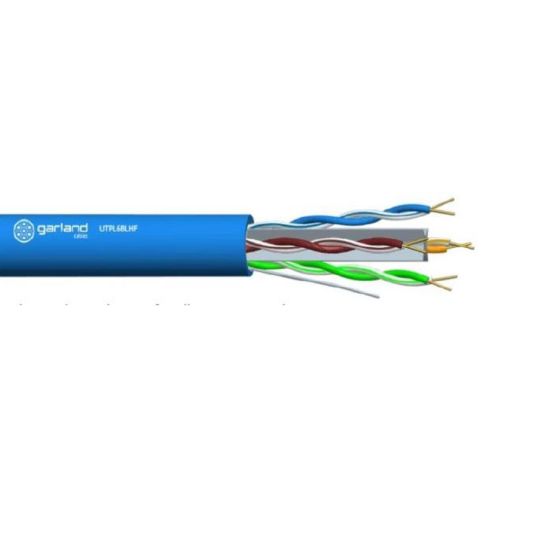

Garland LAN Cable Cat6 UTP 4 Pair 24 AWG PVC Blue Sheath 305 mtr

$Garland\Garland_UTPL6BL305RBBW.jpg$

Description

CAT 6 LAN Cable UTP, Solid, 24 AWG, 8.5 Ohm/km Conductor Resistance, 250 MHz Frequency Bandwidth, Solid Strands, 0.2 mm Insulation Thickness, 4 Pair, 65 mm Bend Radius, 126 N Max. Pulling Force, Annealed Copper Conductor, HDPE Insulation, PVC Sheath, Blue Sheath, 15 to 75 deg C, 305 mtr Length, 6 mm Outside Diameter

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARUTPL6BL305RBBW
Brand	Garland

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	UTPL6BL305RBBW-NLA
Conductor Size	24 AWG
Conductor Type	Solid
Sheath Colour	Blue
Temperature	15 to 75 deg C
Outside Diameter	6 mm
Bend Radius	65 mm
Conductor Resistance	8.5 Ohm/km
Insulation Material	HDPE
Insulation Thickness	0.2 mm
Sheath Material	PVC
Stranding	Solid
Conductor Material	Annealed Copper
Pair Count	4 Pair
Frequency Bandwidth	250 MHz
Max. Pulling Force	126 N
