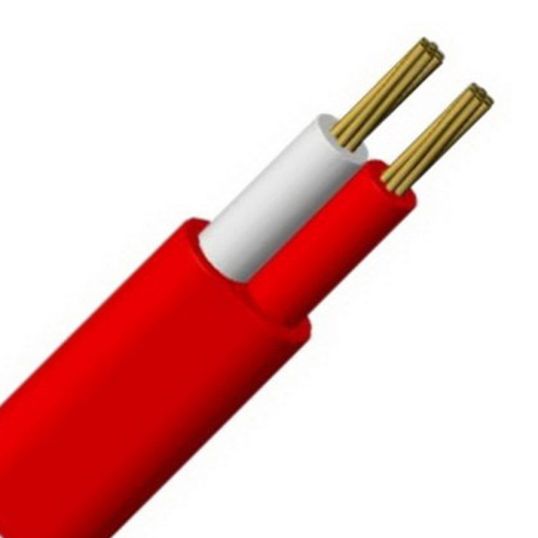

Garland Pro Series Flexible Wire 2 Core Figure 8 0.75mm 240V Plain Annealed Copper PVC/PVC Red

Description

Flexible Wire, 2 Core, Figure 8, 0.75 mm, Plain Annealed Copper, 240 Volt, 24/0.2 mm Strands, Static - 33 mm, 0.5 mm Insulation Thickness, 0.5 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, 105 N Pulling Tension, Tensile Strength: Before Aging - >12 MPa, Conductor Resistance: DC - 29.1 Ohm/km, Insulation Resistance: 50 MOhm/km, V-75 PVC Parallel Webbed Insulation, 4V-75 PVC Sheath, Red White Cores, Red Sheath, -15 to 75 deg C, AS/ACIF S008, AS 1049

Key Specifications

Barcode (EAN-13)	9329849004170
SKU	GARTSCW24RD100
Brand	Garland
Product Type	Flexible Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TSCW24RD100
Bend Radius	Static: 33 mm
Conductor Resistance	29.1 Ohm/km
Conductor Size	0.75 mm
Conductor Type	Annealed Copper
Core Colours	Red/White
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	V-75 PVC Parallel Webbed
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.5 mm
Number of Cores	2 Core
Pulling Tension	105 N
Sheath Colour	Red
Sheath Material	4V-75 PVC
Sheath Thickness	0.5 mm
Standards	AS/ACIF S008 AS 1049
Temperature	-15 to 75 deg C
Stranding	24/0.2 mm
Tensile Strength	Before Aging: >12 MPa
Voltage	240 Volt
