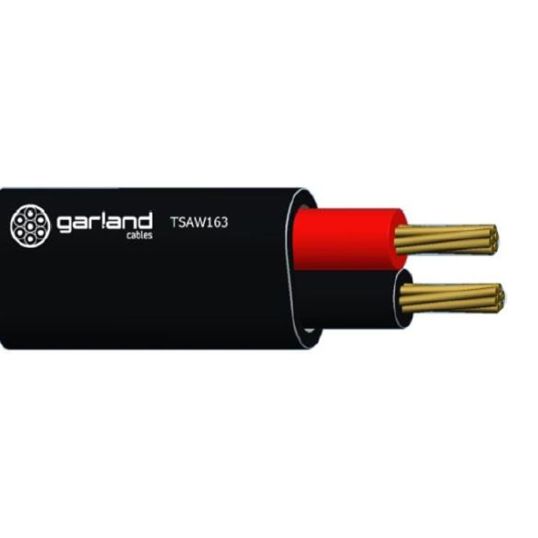

Garland 1.13mm 2 Core Black Figure 8 Speaker Cable PVC/PVC

chevron-left
loader
Loading...

Description

chevron-down
Speaker Cable, Figure 8, 1.13 mm, Annealed Copper, 240 Volt, 2 Core, 16/0.3 mm Strands, 3.65 mm x 5.95 mm Overall Diameter, 36 mm Static Bend Radius, 0.5 mm Insulation Thickness, 0.5 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 158 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, DC: 17.2 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, Red/Black Core, PVC Insulation, PVC Sheath, Black Sheath, -15 to 70 deg C, AS/NZS 1125 AS/NZS 3808

Key Specifications

chevron-down
Barcode (EAN-13)
9329849007270
SKU
GARTSAW163500
Brand
Garland
Product Type
Speaker Cable Figure 8

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 500
UNSPSC Class 26121600
UOM MTR
Vendor Product TSAW163500
Bend Radius Static 36 mm
Conductor Size 1.13 mm
Conductor Resistance DC: 17.2 Ohm/km
Conductor Type Annealed Copper
Core Colours Red/Black
Elongation Insulation: >100% Outer Sheath: >100%
Insulation Material PVC
Insulation Thickness 0.5 mm
Insulation Resistance 50 MOhm/km
Number of Cores 2 Core
Overall Diameter 3.65 mm x 5.95 mm
Pulling Tension 158 N
Sheath Colour Black
Standards AS/NZS 1125 AS/NZS 3808
Sheath Thickness 0.5 mm
Sheath Material PVC
Stranding 16/0.3 mm
Temperature -15 to 70 deg C
Tensile Strength Before Aging: >12 MPa
Voltage 240 Volt
