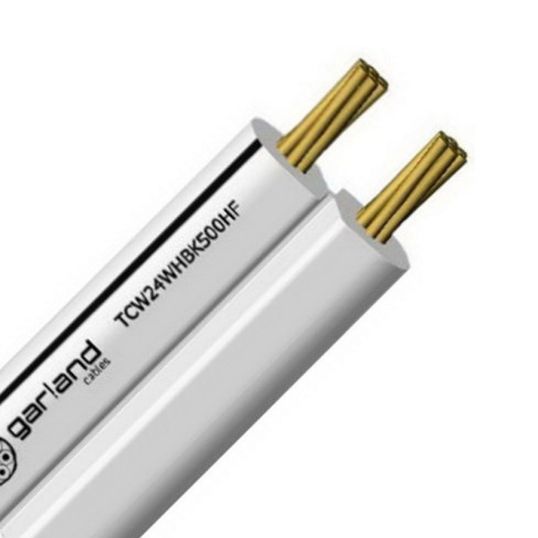

Garland Pro Series Flexible Wire 2 Core Figure 8 0.75mm 250V Plain Annealed Copper LSHF White/Black Trace

$Garland\Garland_TCW24WHBKHF.jpg$

Description

Flexible Wire, 2 Core, Figure 8, 0.75 mm, Plain Annealed Copper, 250 Volt, 24/0.2 mm Strands, Static - 27 mm, 0.75 mm Insulation Thickness, 105 N Pulling Tension, Conductor Resistance: DC - 27.5 Ohm/km, Insulation Resistance: 50 MOhm/km, LSHF Insulation, White/Black Trace Sheath, -25 to 70 deg C, AS/CA S-008, AS 1049

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARTCW24WHBKHF500
Brand	Garland
Product Type	Flexible Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TCW24WHBKHF500
Bend Radius	Static: 27 mm
Conductor Resistance	27.5 Ohm/km
Conductor Size	0.75 mm
Conductor Type	Annealed Copper
Insulation Material	LSHF
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.75 mm
Number of Cores	2 Core
Pulling Tension	105 N
Sheath Colour	White/Black Trace
Standards	AS/CA S-008 AS 1049
Stranding	24/0.2 mm
Temperature	-25 to 70 deg C
Voltage	250 Volt
