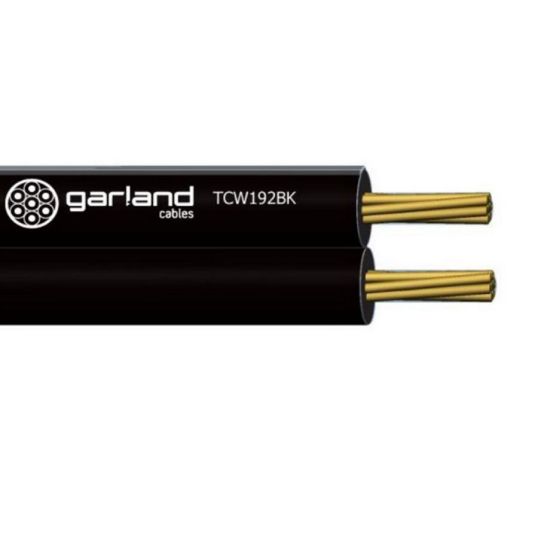

Garland Pro Series Garden Lighting Cable 2 Core Figure 8 5.44 sq-m 240V PVC Black

$Garland\Garland_TCW192BK.jpg$

Description

Garden Lighting Cable, 2 Core, Figure 8, 5.44 sq-m, 10 AWG, Plain Annealed Copper, 240 Volt, 192/0.19 mm Strands, Bend Radius: Static - 45 mm, 1 mm Insulation Thickness, 762 N Pulling Tension, Conductor Resistance: DC - 3.3 Ohm/km, Insulation Resistance: 50 MOhm/km, PVC Insulation, Black Insulation, -15 to 70 deg C, AS/NZS 1125, AS/NZS 3808

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARTCW192BK100
Brand	Garland
Product Type	Garden Lighting Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TCW192BK100
Conductor Size	5.44 mm
Bend Radius	Static 45 mm
Conductor Resistance	DC: 3.3 Ohm/km
Conductor Type	Annealed Copper
Insulation Colour	Black
Insulation Material	PVC
Insulation Thickness	1 mm
Insulation Resistance	50 MOhm/km
Number of Cores	2 Core
Pulling Tension	762 N
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	192/0.19 mm
Temperature	-15 to 70 deg C
Voltage	240 Volt
