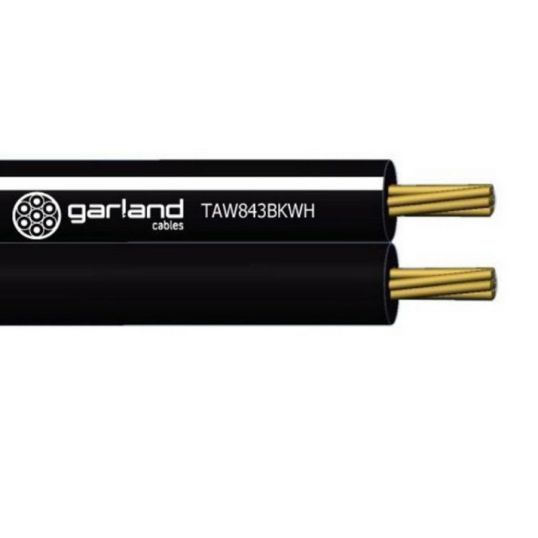

Garland Pro Series Flexible Wire 2 Core Figure 8 5.93mm 250V Plain Annealed Copper PVC Black/White Trace

Description

Flexible Wire, 2 Core, Figure 8, 5.93 mm, Plain Annealed Copper, 250 Volt, 84/0.3 mm Strands, Static - 50 mm, 0.8 mm Insulation Thickness, Elongation: Insulation - >100%, 831 N Pulling Tension, Conductor Resistance: DC - 3.3 Ohm/km, Insulation Resistance: 50 MOhm/km, PVC Insulation, Black/White Trace Sheath, -15 to 70 deg C, AS/NZS 1125, AS/NZS 3808

Key Specifications

SKU	GARTAW843BKWH500
Brand	Garland
Product Type	Flexible Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TAW843BKWH500
Bend Radius	Static: 50 mm
Conductor Resistance	3.3 Ohm/km
Conductor Size	6 mm
Conductor Type	Annealed Copper
Elongation	Insulation: >100%
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.8 mm
Number of Cores	2 Core
Pulling Tension	831 N
Sheath Colour	Black/White Trace
Standards	AS/NZS 1125 AS/NZS 3808
Temperature	-15 to 70 deg C
Stranding	84/0.3 mm
Voltage	250 Volt
