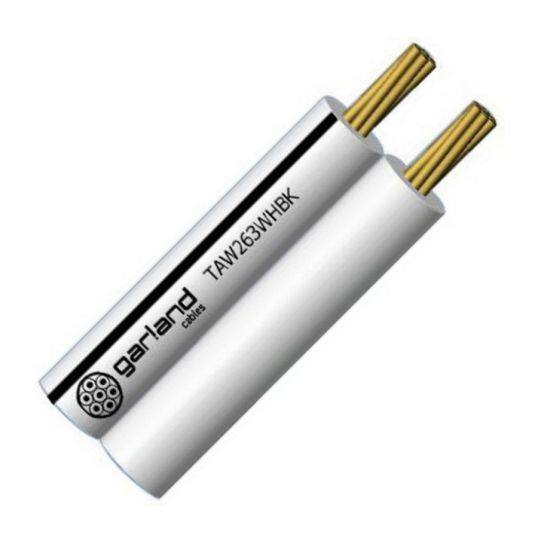

Garland Pro Series Flexible Wire 2 Core Figure 8 1.84mm 250V Plain Annealed Copper PVC White/Black Trace
Loading...
Description
Flexible Wire, 2 Core, Figure 8, 1.84 mm, Plain Annealed Copper, 250 Volt, 26/0.3 mm Strands, Static - 30 mm, 0.6 mm Insulation Thickness, Elongation: Insulation - >100%, 257 N Pulling Tension, Conductor Resistance: DC - 10.5 Ohm/km, Insulation Resistance: 50 MOhm/km, PVC Insulation, White/Black Trace Sheath, -15 to 70 deg C, AS/NZS 1125, AS/NZS 3808
Key Specifications
| Barcode (EAN-13) |
9329849003357
|
|---|---|
| SKU |
GARTAW263WHBK100
|
| Brand |
Garland
|
| Product Type |
Flexible Cable Figure 8
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | TAW263WHBK100 |
| Bend Radius | Static: 30 mm |
| Conductor Resistance | 10.5 Ohm/km |
| Conductor Size | 6 mm |
| Conductor Type | Annealed Copper |
| Elongation | Insulation: >100% |
| Insulation Material | PVC |
| Insulation Resistance | 50 MOhm/km |
| Insulation Thickness | 0.6 mm |
| Number of Cores | 2 Core |
| Pulling Tension | 257 N |
| Sheath Colour | White/Black Trace |
| Standards | AS/NZS 1125 AS/NZS 3808 |
| Temperature | -15 to 70 deg C |
| Stranding | 26/0.3 mm |
| Voltage | 250 Volt |
