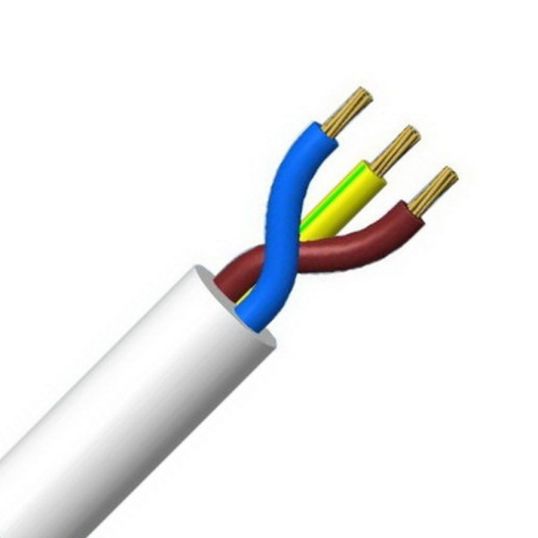

Garland Pro Series Ordinary Duty Flexible Cable 2 Core & Earth 1mm 250/440V Plain Annealed Copper PVC/PVC Grey

Description

Flexible Cable, Ordinary Duty, 2 Core & Earth, 1 mm, Plain Annealed Copper, 250/440 Volt, 32/0.2 mm Strands, Static - 65 mm, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, Tensile Strength: Before Aging - >12 MPa, Conductor Resistance: DC - 19.5 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, Brown Blue Green/Yellow Cores, Grey Sheath, -15 to 90 deg C, AS/NZS 1125, AS/NZS 3808, AS/NZS 3191

Key Specifications

SKU	GAROD332GY
Brand	Garland
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	OD332GY
Bend Radius	Static: 65 mm
Conductor Resistance	19.5 Ohm/km
Conductor Size	1 mm
Conductor Type	Annealed Copper
Core Colours	Brown/Blue/Green/Yellow
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	V-90 PVC
Insulation Thickness	0.6 mm
Number of Cores	2 Core + Earth
Sheath Colour	Grey
Sheath Material	5V-90 PVC
Sheath Thickness	0.8 mm
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 3191
Stranding	32/0.2 mm
Temperature	-15 to 90 deg C
Tensile Strength	Before Aging: >12 MPa
Voltage	250-440 Volt
