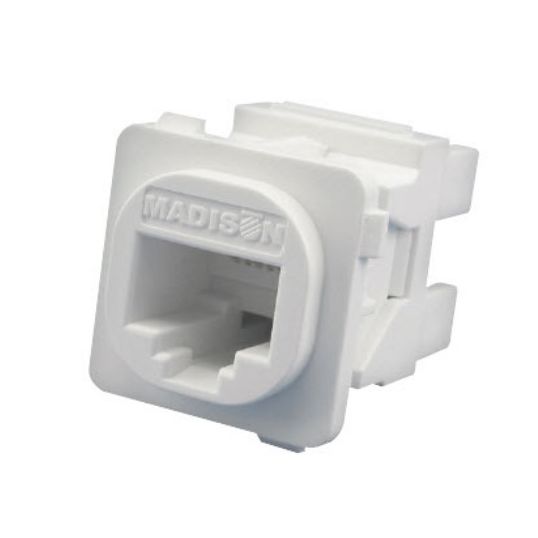

Garland Outlet Mechanism Cat6 UTP RJ45 T568A/B White

Description

Outlet Mechanism Cat6 UTP, Solid: 22-24 AWG, RJ45 Connector, Cat6 UTP Cable, >100 MOhm Insulation Resistance, 25 lb Plug Retention Force, Wiring Scheme: T568A/B, Flammability: UL94V-0, IDC Termination, Thermoplastic Housing, Phosphor Bronze Contact Base, Gold Over Nickel Contact Plating, White

Key Specifications

Barcode (EAN-13)	9329849020194
SKU	GARMT64501C-TUB
Brand	Garland

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fitted with Krone type IDC connectors
Standard Pack Size	50
UNSPSC Class	43223300
UOM	EA
Vendor Product	MT64501C-TUB
Cable Type	Cat6 UTP
Colour	White
Conductor Size	Solid: 22-24 AWG
Connector	RJ45
Contact Base Material	Phosphor Bronze
Contact Plating Material	Gold Plated
Flammability	UL94V-0
Housing Material	Thermoplastic
Insulation Resistance	>100 MOhm
Termination Type	IDC
Wiring Scheme	T568A/B
