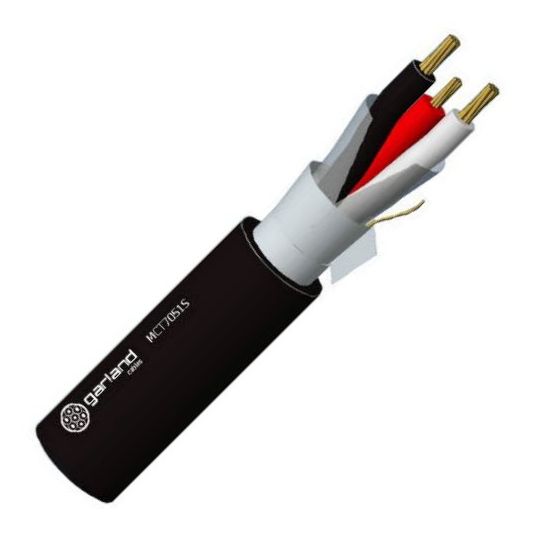

Garland 1.5mm 1 Triad Instrumentation Cable Unarmoured Overall Screened

$Garland\Garland_MCT7051S.jpg$

Description

Instrumentation Cable, Unarmoured, 1.5 mm, Annealed Copper, 110-150 Volt, 1 Triad, 7/0.5 mm Strands, Overall Screened Screen, 7.2 mm Overall Diameter, 72 mm Static Bend Radius, Insulation: >100% Outer Sheath: >100% Elongation, 288 N Pulling Tension, >12 MPa Tensile Strength, DC: 13.6 Ohm/km Conductor Resistance, 0.3 mm Insulation Thickness, 0.75 mm Sheath Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White/Red Numerals Core, V-90HT PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -15 to 90 deg C, AS/NZS 1125 AS/NZS 3808 IEC 60332-1

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMCT7051S500
Brand	Garland
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCT7051S500
Bend Radius	Static 72 mm
Conductor Size	1.5 mm
Conductor Resistance	DC: 13.6 Ohm/km
Elongation	Insulation: >100% Outer Sheath: >100%
Conductor Type	Annealed Copper
Core Colours	Black/White/Red Numerals
Insulation Material	V-90HT PVC
Insulation Thickness	0.3 mm
Overall Diameter	7.2 mm
Number of Pairs	1 Triad
Screen Format	Overall Screened
Screen Coverage	100%
Pulling Tension	288 N
Sheath Colour	Black
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 IEC 60332-1
Screen Material	Aluminium/Polyester Tape
Sheath Thickness	0.75 mm
Temperature	-15 to 90 deg C
Tensile Strength	>12 MPa
Stranding	7/0.5 mm
Voltage	110-150 Volt
