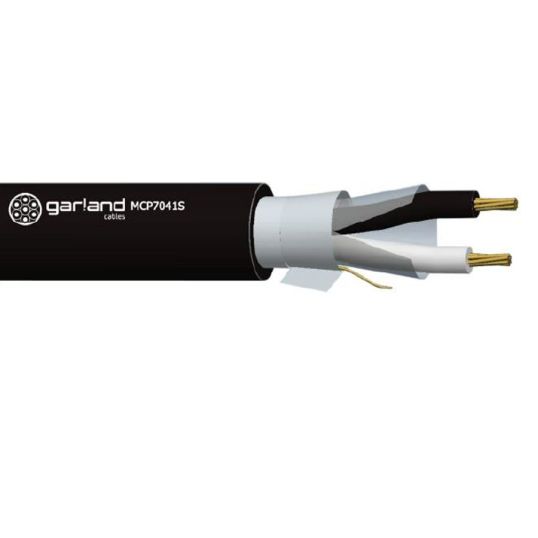

Garland 0.88mm 1 Pair Instrumentation Cable Unarmoured Overall Screened

Description

Instrumentation Cable, Unarmoured, 0.88 mm, Annealed Copper, 1 Pair, 7/0.4 mm Strands, Overall Screened Screen, 5.5 mm Overall Diameter, 62 mm Static Bend Radius, Insulation: >100% Outer Sheath: >100% Elongation, 123 N Pulling Tension, >12 MPa Tensile Strength, DC: 22.2 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 0.3 mm Insulation Thickness, 0.8 mm Sheath Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, PVC Insulation, V-90HT PVC Sheath, Signal Black Sheath, -15 to 90 deg C, AS/ACIF S008 AS 1049

Key Specifications

SKU	GARMCP7041S100
Brand	Garland
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP7041S100
Bend Radius	Static 62 mm
Conductor Resistance	DC: 22.2 Ohm/km
Conductor Size	0.88 mm
Conductor Type	Annealed Copper
Core Colours	Black/White Numerals
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.3 mm
Number of Pairs	1 Pair
Overall Diameter	5.5 mm
Screen Material	Aluminium/Polyester Tape
Screen Coverage	100%
Pulling Tension	123 N
Screen Format	Overall Screened
Sheath Colour	Signal Black
Sheath Material	V-90HT PVC
Sheath Thickness	0.8 mm
Stranding	7/0.4 mm
Tensile Strength	>12 MPa
Standards	AS/ACIF S008 AS 1049
Temperature	-15 to 90 deg C
