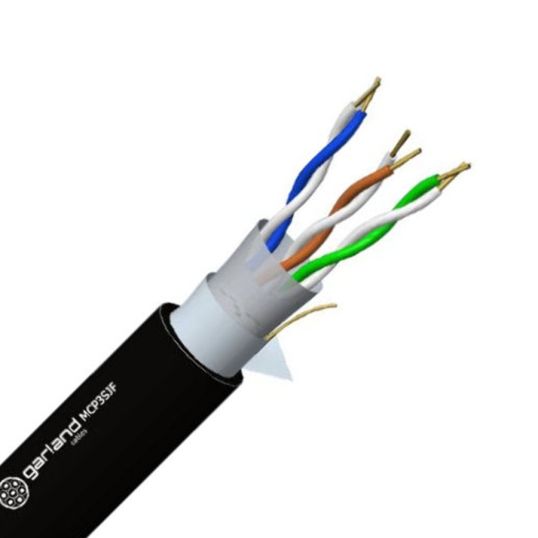

Garland Pro Series Data Cable 3 Pair Gel Filled Overall Screened 0.22mm PP/AL/PE Signal Black

$Garland\Garland_MCP3SJFP.jpg$

Description

Data Cable, 3 Pair, Gel Filled, Overall Screened, 0.22 mm, Tinned Annealed Copper, 7/0.2 mm Strands, 6 mm Overall Diameter, Bend Radius: Static - 60 mm, 0.28 mm Insulation Thickness, 0.65 mm Sheath Thickness, Elongation: Insulation - >150% Outer Sheath - >400%, 92 N Pulling Tension, Conductor Resistance: DC - 95.5 Ohm/km, Insulation Resistance: 1000 MOhm/km, 100% Screen Coverage, Aluminium/Polyester Tape, Polypropylene Insulation, Polyethylene Sheath, Blue & White Orange & White Green & White Cores, Signal Black RAL 9004 Sheath, -30 to 70 deg C, AS/CA S008, EIA-RS422, AS 1049

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMCP3SJFP1000
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1000
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP3SJFP1000
Conductor Size	0.22 mm
Bend Radius	Static 60 mm
Conductor Type	Tinned Annealed Copper
Core Colours	Blue/White/Orange/Green
Conductor Resistance	DC: 95.5 Ohm/km
Elongation	Insulation: >150% Outer Sheath: >400%
Insulation Material	Polypropylene
Insulation Thickness	0.28 mm
Insulation Resistance	1000 MOhm/km
Number of Pairs	3 Pair
Overall Diameter	6 mm
Screen Coverage	100%
Pulling Tension	92 N
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Colour	Signal Black
Sheath Material	Polyethylene
Standards	AS/CA S008 EIA-RS422 AS 1049
Sheath Thickness	0.65 mm
Temperature	-30 to 70 deg C
Stranding	7/0.2 mm
