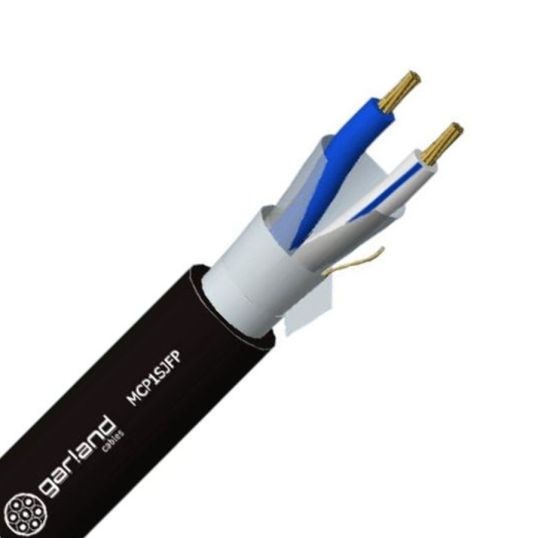

Garland Pro Series Data Cable 1 Pair Gel Filled Overall Screened 0.22mm PP/AL/PE Black

$Garland\Garland_MCP1SJFP.jpg$

Description

Data Cable, 1 Pair, Gel Filled, Overall Screened, 0.22 mm, Tinned Annealed Copper, 7/0.2 mm Strands, 4.4 mm Overall Diameter, Bend Radius: Static - 44 mm, 0.3 mm Insulation Thickness, 0.75 mm Sheath Thickness, Elongation: Insulation - >150% Outer Sheath - >400%, 30 N Pulling Tension, Conductor Resistance: DC - 95.3 Ohm/km, Insulation Resistance: 10000 MOhm/km, 100% Screen Coverage, Aluminium/Polyester Tape, Polypropylene Insulation, Polyethylene Sheath, Black Sheath, -30 to 70 deg C, AS/ACIF S008, UL758, EIA-RS422

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMCP1SJFP100
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP1SJFP100
Conductor Size	0.22 mm
Bend Radius	Static 44 mm
Conductor Type	Tinned Annealed Copper
Conductor Resistance	DC: 95.3 Ohm/km
Elongation	Insulation: >150% Outer Sheath: >400%
Insulation Material	Polypropylene
Insulation Thickness	0.3 mm
Insulation Resistance	10000 MOhm/km
Number of Pairs	1 Pair
Overall Diameter	4.4 mm
Screen Coverage	100%
Pulling Tension	30 N
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Colour	Black
Sheath Material	Polyethylene
Standards	AS/ACIF S008 UL758 EIA-RS422
Sheath Thickness	0.75 mm
Temperature	-30 to 70 deg C
Stranding	7/0.2 mm
