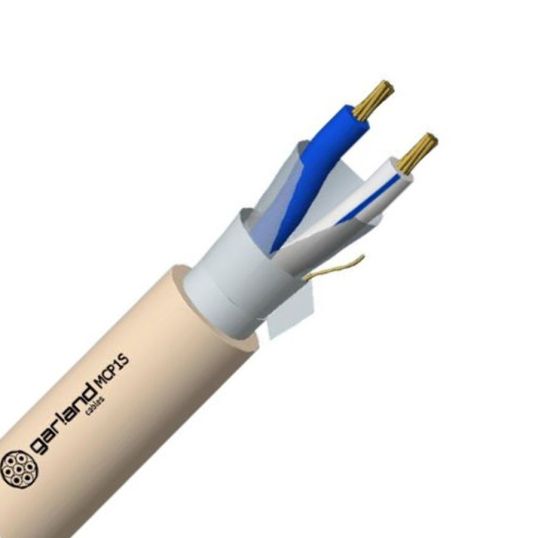

Garland 0.22mm 1 Pair Beige Data Cable Overall Screened Polypropylene/PVC

$Garland\Garland_MCP1S.jpg$

Description

Data Cable, 0.22 mm, Tinned Annealed Copper, 1 Pair, 7/0.2 mm Strands, Overall Screened Screen, 4.4 mm Overall Diameter, 44 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.8 mm Sheath Thickness, Insulation: >150% Outer Sheath: >100% Elongation, 30 N Pulling Tension, >12 MPa Tensile Strength, DC: 95.3 Ohm/km Conductor Resistance, 1000 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Blue Core, Polypropylene Insulation, PVC Sheath, Beige Sheath, -15 to 70 deg C, AS/CA S008 EIA-RS422 AS 1049 UL 758

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMCP1S500
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP1S500
Conductor Size	0.22 mm
Bend Radius	Static 44 mm
Conductor Type	Tinned Annealed Copper
Core Colours	White/Blue
Conductor Resistance	DC: 95.3 Ohm/km
Elongation	Insulation: >150% Outer Sheath: >100%
Insulation Material	Polypropylene
Insulation Thickness	0.28 mm
Insulation Resistance	1000 MOhm/km
Number of Pairs	1 Pair
Overall Diameter	4.4 mm
Screen Coverage	100%
Pulling Tension	30 N
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Colour	Beige
Sheath Material	PVC
Standards	AS/CA S008 EIA-RS422 AS 1049 UL 758
Sheath Thickness	0.8 mm
Temperature	-15 to 70 deg C
Tensile Strength	>12 MPa
Stranding	7/0.2 mm
