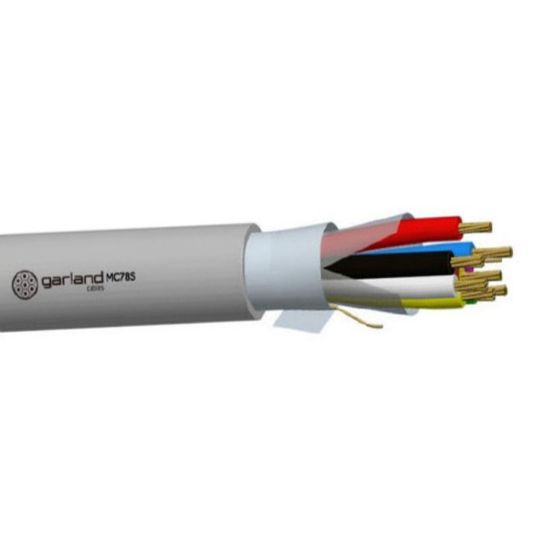

Garland 0.22mm 8 Core Grey Data Cable Overall Screened PVC/PVC

$Garland\Garland_MC78S.jpg$

Description

Data Cable, 0.22 mm, Tinned Annealed Copper, 8 Core, 7/0.2 mm Strands, Overall Screened Screen, 5.9 mm Overall Diameter, 59 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.7 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 123 N Pulling Tension, >12 MPa Tensile Strength, DC: 93.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Yellow/Red/Black/White/Brown/Green/Violet/Blue Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/CA S008 EIA-RS232 AS 1049

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMC78S100
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC78S100
Bend Radius	Static 59 mm
Conductor Resistance	DC: 93.3 Ohm/km
Conductor Type	Tinned Annealed Copper
Core Colours	Yellow/Red/Black/White/Brown/Green/Violet/Blue
Conductor Size	0.22 mm
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.28 mm
Number of Cores	8 Core
Overall Diameter	5.9 mm
Screen Coverage	100%
Pulling Tension	123 N
Sheath Colour	Grey
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Material	PVC
Standards	AS/CA S008 EIA-RS232 AS 1049
Sheath Thickness	0.7 mm
Stranding	7/0.2 mm
Tensile Strength	>12 MPa
Temperature	-15 to 70 deg C
