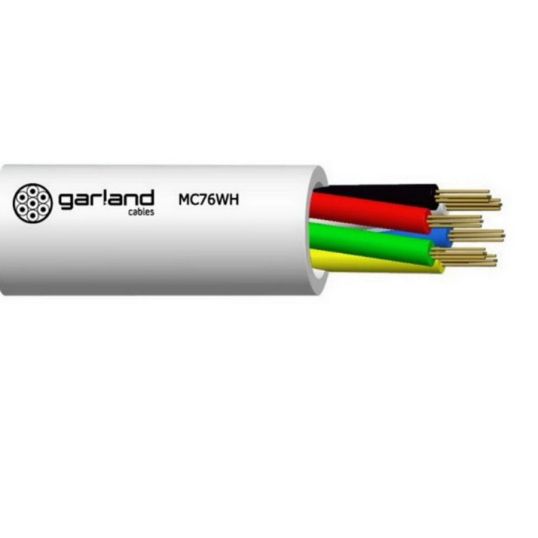

Garland 0.22mm 6 Core White Security Cable PVC/PVC

$Garland\Garland_MC76WH.jpg$

Description

Security Cable, 0.22 mm, Annealed Copper, 6 Core, 7/0.2 mm Strands, 4.9 mm Overall Diameter, 49 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.5 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 92 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 93.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, PVC Insulation, PVC Sheath, White Sheath, -15 to 70 deg C, AS/ACIF S008 BS3737-3.30 AS 1049

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMC76WH300B
Brand	Garland
Product Type	Security Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	300
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC76WH300B
Conductor Resistance	93.3 Ohm/km
Conductor Size	0.22 mm
Conductor Type	Annealed Copper
Bend Radius	Static 49 mm
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.28 mm
Overall Diameter	4.9 mm
Number of Cores	6 Core
Pulling Tension	92 N
Sheath Colour	White
Sheath Material	PVC
Standards	AS/ACIF S008 BS3737-3.30 AS 1049
Sheath Thickness	0.5 mm
Temperature	-15 to 70 deg C
Tensile Strength	Before Aging: >12 MPa
Stranding	7/0.2 mm
