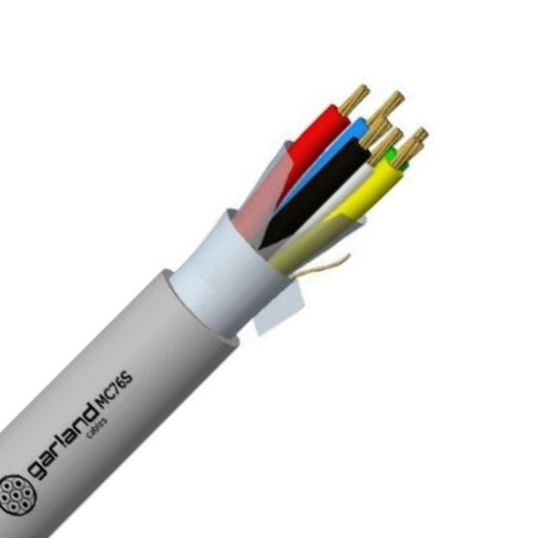

Garland 0.22mm 6 Core Grey Data Cable Overall Screened PVC/PVC

$Garland\Garland_MC76S.jpg$

Description

Data Cable, 0.22 mm, Tinned Annealed Copper, 6 Core, 7/0.2 mm Strands, Overall Screened Screen, 5.5 mm Overall Diameter, 55 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.7 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 92 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 95.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Blue/Red/Black/Yellow/Green Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/CA S008 EIA-RS232 AS 1049 UL 758

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMC76S300B
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	300
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC76S300B
Bend Radius	Static 55 mm
Conductor Resistance	95.3 Ohm/km
Conductor Type	Tinned Annealed Copper
Core Colours	White/Blue/Red/Black/Yellow/Green
Conductor Size	0.22 mm
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.28 mm
Number of Cores	6 Core
Overall Diameter	5.5 mm
Screen Coverage	100%
Pulling Tension	92 N
Sheath Colour	Grey
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Material	PVC
Standards	AS/CA S008 EIA-RS232 AS 1049 UL 758
Sheath Thickness	0.7 mm
Stranding	7/0.2 mm
Tensile Strength	Before Aging: >12 MPa
Temperature	-15 to 70 deg C
