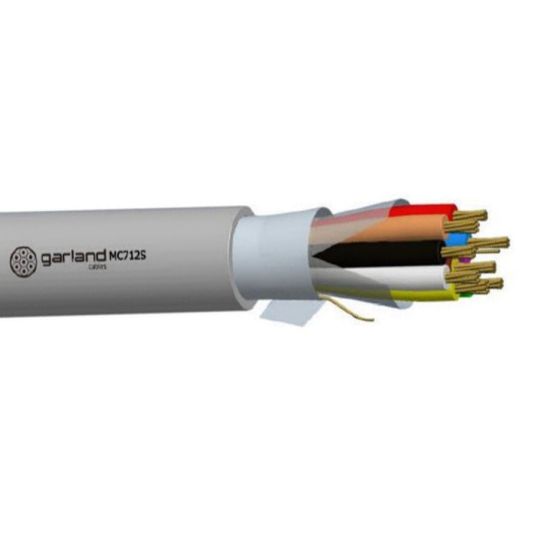

Garland 0.22mm 12 Core Grey Data Cable Overall Screened PVC/PVC

$Garland\Garland_MC712S.jpg$

Description

Data Cable, 0.22 mm, Tinned Annealed Copper, 12 Core, 7/0.2 mm Strands, Overall Screened Screen, 6.9 mm Overall Diameter, 69 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.8 mm Sheath Thickness, 184 N Pulling Tension, DC: 95.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Red/Blk/Ylw/Brown/Org/Pink/Grey/Blue/Violet/Grn/Light Brown Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/ACIF S008 EIA-RS232 UL 758

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMC712S500
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC712S500
Conductor Size	0.22 mm
Bend Radius	Static 69 mm
Conductor Type	Tinned Annealed Copper
Core Colours	White/Red/Blk/Ylw/Brown/Org/Pink/Grey/Blue/Violet/Grn/Light Brown
Conductor Resistance	DC: 95.3 Ohm/km
Insulation Material	PVC
Number of Cores	12 Core
Insulation Thickness	0.28 mm
Insulation Resistance	50 MOhm/km
Overall Diameter	6.9 mm
Screen Coverage	100%
Pulling Tension	184 N
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Colour	Grey
Sheath Material	PVC
Standards	AS/ACIF S008 EIA-RS232 UL 758
Sheath Thickness	0.8 mm
Temperature	-15 to 70 deg C
Stranding	7/0.2 mm
