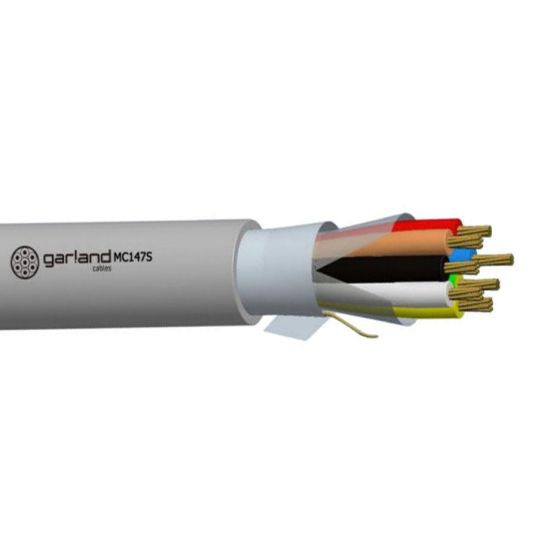

Garland 0.44mm 7 Core Grey Data Cable Overall Screened PVC/PVC

Description

Data Cable, 0.44 mm, Annealed Copper, 7 Core, 14/0.2 mm Strands, Overall Screened Screen, 6.55 mm Overall Diameter, 65.5 mm Static Bend Radius, 0.3 mm Insulation Thickness, 0.7 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 215 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 45.2 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, White/Blue/Red/Black/Yellow/Green/Brown Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/ACIF S008 BS4737-3.30

Key Specifications

SKU	GARMC147S250
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	250
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC147S250
Conductor Size	0.44 mm
Bend Radius	Static 65.5 mm
Conductor Type	Annealed Copper
Core Colours	White/Blue/Red/Black/Yellow/Green/Brown
Conductor Resistance	45.2 Ohm/km
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	PVC
Number of Cores	7 Core
Insulation Thickness	0.3 mm
Insulation Resistance	50 MOhm/km
Overall Diameter	6.55 mm
Screen Coverage	100%
Pulling Tension	215 N
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Colour	Grey
Sheath Material	PVC
Standards	AS/ACIF S008 BS4737-3.30
Sheath Thickness	0.7 mm
Temperature	-15 to 70 deg C
Tensile Strength	Before Aging: >12 MPa
Stranding	14/0.2 mm
