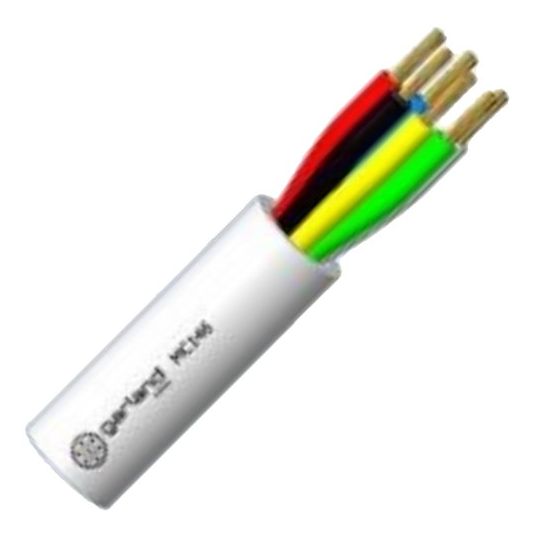

Garland 0.44mm 6 Core White Security Cable PVC/PVC

Description

Security Cable, 0.44 mm, Annealed Copper, 6 Core, 14/0.2 mm Strands, 6.1 mm Overall Diameter, 61 mm Static Bend Radius, 0.3 mm Insulation Thickness, 0.6 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 166 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 45.2 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, PVC Insulation, PVC Sheath, White Sheath, -15 to 70 deg C, AS/ACIF S008 BS3737-3.30

Key Specifications

Barcode (EAN-13)	9329849005429
SKU	GARMC146WH100
Brand	Garland
Product Type	Security Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC146WH100
Conductor Resistance	45.2 Ohm/km
Bend Radius	Static 61 mm
Conductor Size	0.44 mm
Conductor Type	Annealed Copper
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	PVC
Insulation Thickness	0.3 mm
Insulation Resistance	50 MOhm/km
Number of Cores	6 Core
Overall Diameter	6.1 mm
Pulling Tension	166 N
Sheath Colour	White
Sheath Material	PVC
Sheath Thickness	0.6 mm
Standards	AS/ACIF S008 BS3737-3.30
Stranding	14/0.2 mm
Temperature	-15 to 70 deg C
Tensile Strength	Before Aging: >12 MPa
