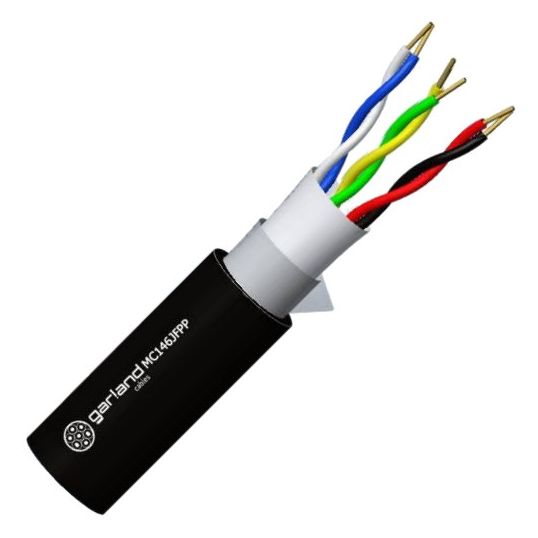

Garland 0.44mm 3 Pair Black Security Cable Polypropylene/Polyethylene

$Garland\Garland_MC146JFPP.jpg$

Description

Security Cable, 0.44 mm, Annealed Copper, 3 Pair, 14/0.2 mm Strands, 6.5 mm Overall Diameter, 65 mm Static Bend Radius, 0.3 mm Insulation Thickness, 0.6 mm Sheath Thickness, Insulation: >150% Outer Sheath: >400% Elongation, 166 N Pulling Tension, 45.2 Ohm/km Conductor Resistance, 1000 MOhm/km Insulation Resistance, Polypropylene Insulation, Polyethylene Sheath, Black Sheath, -30 to 70 deg C, AS/ACIF S008

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMC146JFPP100
Brand	Garland
Product Type	Security Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC146JFPP100
Bend Radius	Static 65 mm
Conductor Size	0.44 mm
Conductor Resistance	45.2 Ohm/km
Conductor Type	Annealed Copper
Elongation	Insulation: >150% Outer Sheath: >400%
Insulation Material	Polypropylene
Insulation Resistance	1000 MOhm/km
Insulation Thickness	0.3 mm
Overall Diameter	6.5 mm
Number of Pairs	3 Pair
Pulling Tension	166 N
Sheath Material	Polyethylene
Sheath Colour	Black
Sheath Thickness	0.6 mm
Standards	AS/ACIF S008
Stranding	14/0.2 mm
Temperature	-30 to 70 deg C
