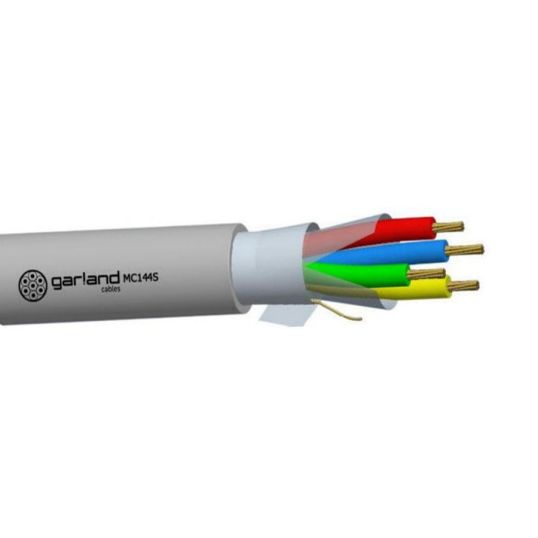

Garland 0.44mm 4 Core Grey Data Cable Overall Screened PVC/PVC

$Garland\Garland_MC144S.jpg$

Description

Data Cable, 0.44 mm, Annealed Copper, 4 Core, 14/0.2 mm Strands, Overall Screened Screen, 5.65 mm Overall Diameter, 56 mm Static Bend Radius, 0.3 mm Insulation Thickness, 0.7 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 123 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, 45.2 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Red/Blue/Green/Yellow Core, PVC Insulation, PVC Sheath, Grey Sheath, -15 to 70 deg C, AS/ACIF S008 BS4737-3.30 AS 1049

Key Specifications

Barcode (EAN-13)	9329849002602
SKU	GARMC144S500
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MC144S500
Bend Radius	Static 56 mm
Conductor Size	0.44 mm
Conductor Type	Annealed Copper
Conductor Resistance	45.2 Ohm/km
Core Colours	Red/Blue/Green/Yellow
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	PVC
Insulation Resistance	50 MOhm/km
Insulation Thickness	0.3 mm
Pulling Tension	123 N
Number of Cores	4 Core
Overall Diameter	5.65 mm
Screen Coverage	100%
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Grey
Sheath Material	PVC
Standards	AS/ACIF S008 BS4737-3.30 AS 1049
Stranding	14/0.2 mm
Sheath Thickness	0.7 mm
Tensile Strength	Before Aging: >12 MPa
Temperature	-15 to 70 deg C
